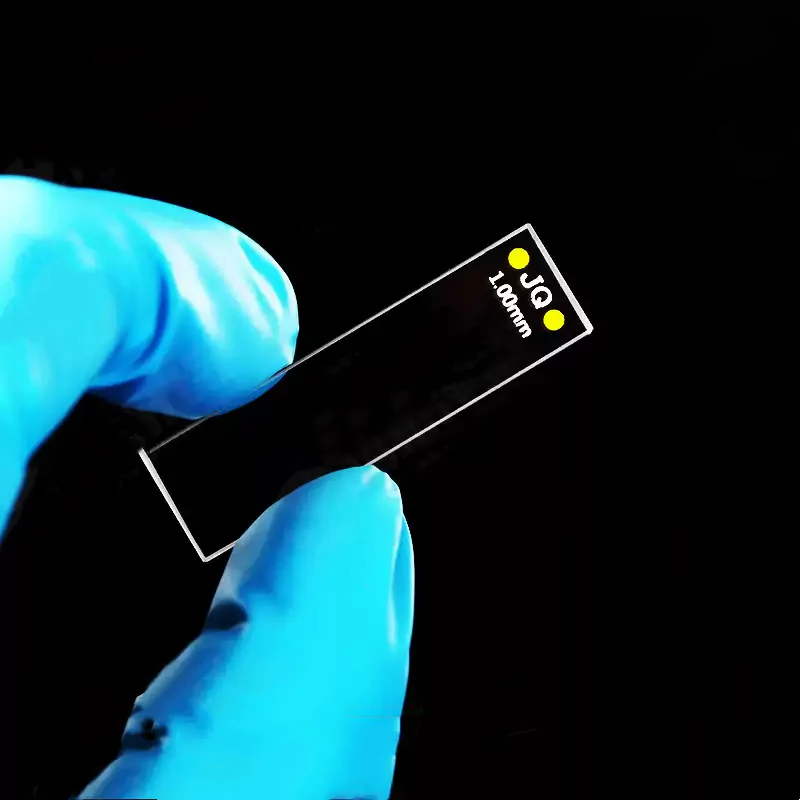

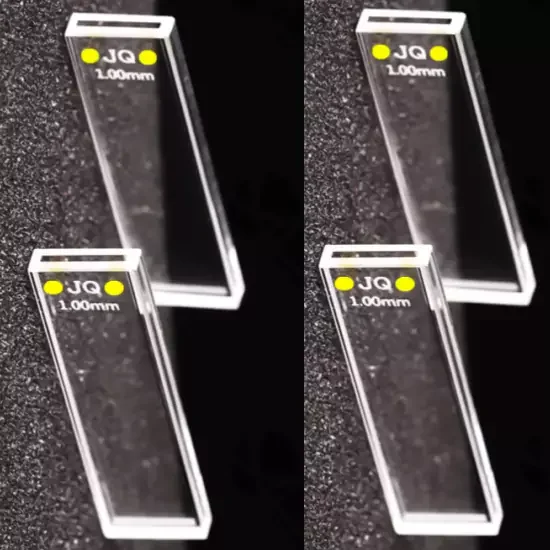

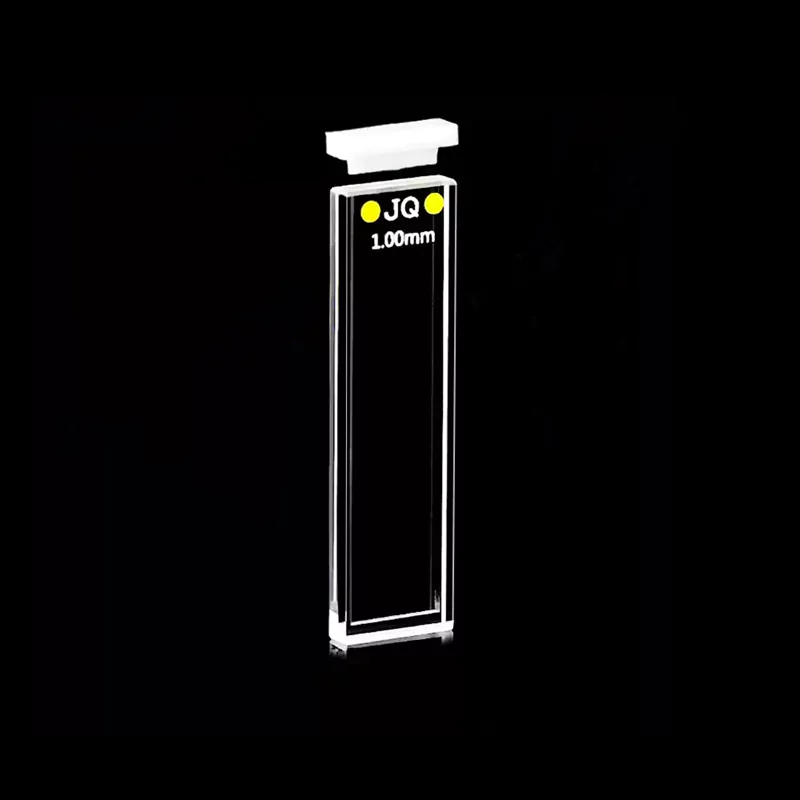

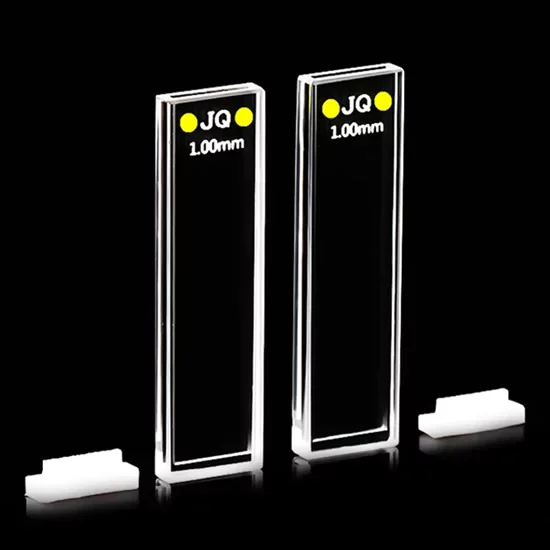

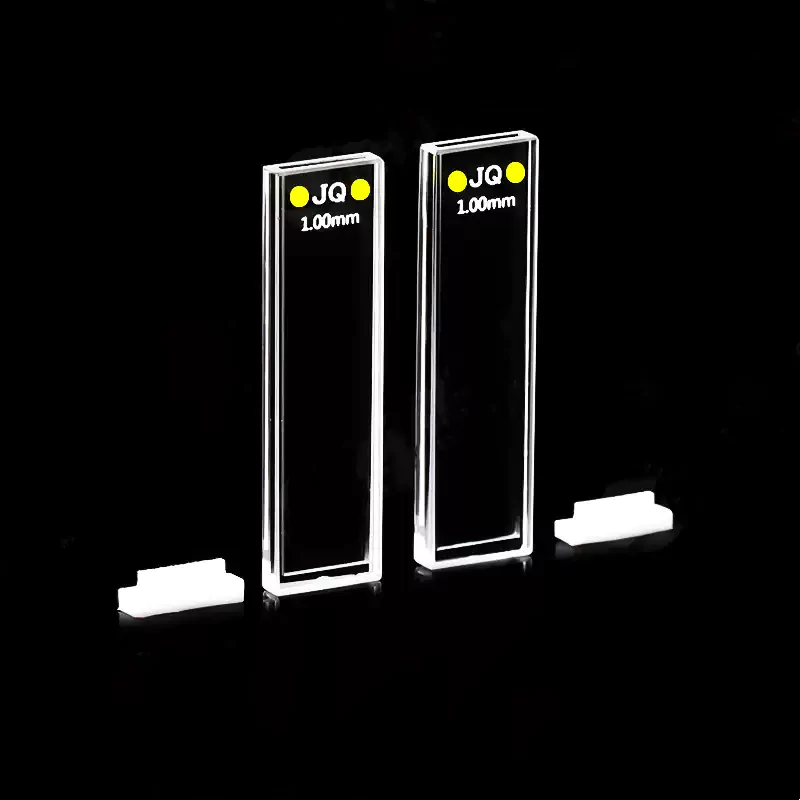

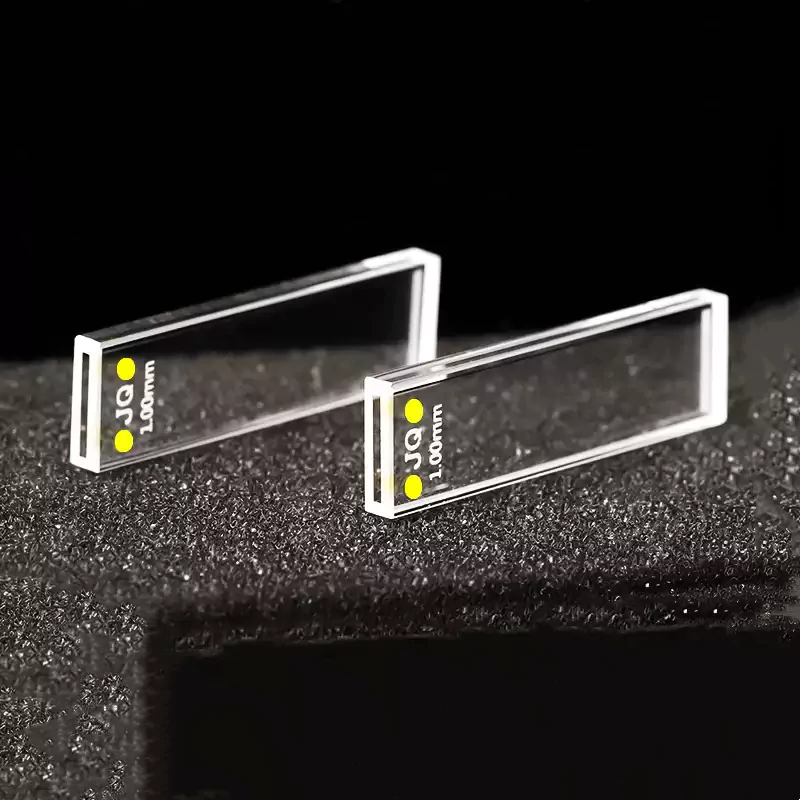

Fluorescence Quartz UV Cuvette Cell with Lid for Analytical Laboratories -TOQUARTZ®
Designed for accurate fluorescence spectroscopy in analytical laboratories, these cells offer superior chemical resistance, precise path lengths, and reliable sample containment. Ideal for biological sample analysis, fluorescence measurements, and UV-Vis spectroscopy applications.
Features of Fluorescence Quartz UV Cuvette Cell
TOQUARTZ® Fluorescence Quartz UV Cuvettes are engineered from high-purity fused silica offering exceptional optical and mechanical properties for precise spectroscopic analysis. These cuvettes provide reliable performance for both routine and specialized applications in analytical chemistry, biochemistry, environmental testing, and pharmaceutical research.
Optical Properties
- Wide spectral range (200-2500nm) for UV-Vis-NIR applications
- Exceptional transmittance (>80%) for accurate fluorescence detection
- Minimal auto-fluorescence for reduced background interference
- Optically polished surfaces for enhanced light transmission
Precision Design
- Precise path length (±0.1mm tolerance) for accurate quantitative analysis
- Secure lid design prevents sample evaporation and contamination
- Compatible with standard spectrophotometer holders (12.5×12.5mm footprint)
- Optimized internal volume minimizes sample consumption
- Wide Spectral Range (200-2500nm)
- Accurate Fluorescence Detection
- Custom Design Support
Technical Specifications & Dimensions of
Quartz UV Fluorescence Cuvettes
Technical Specifications of Quartz UV Fluorescence Cuvettes
Material Properties
| Parameter | Value / Range | Notes |
| Composition | ≥99.995% SiO₂ | High-purity fused quartz, low background fluorescence |
| Density | 2.20 g/cm³ | At 20°C |
| Hardness (Mohs) | 5.5–6.5 | Suitable for repeated cleaning |
| Breaking Strength | ≥350 MPa | High mechanical stability |
| Young’s Modulus | 72 GPa | Elastic modulus |
| Poisson’s Ratio | 0.17 | – |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷ /°C | From 20°C to 300°C |
| Thermal Conductivity | 1.4 W/m·K | At 20°C |
| Maximum Operating Temperature | 1100°C (continuous) / 1200°C (short) | Avoid thermal shock |
| Specific Heat Capacity | 670 J/kg·K | At 20°C |
| Chemical Resistance | Excellent | Resistant to acids, bases, solvents (except HF, hot H₃PO₄) |
Optical Properties
| Parameter | Value / Range | Notes |
| Wavelength Transmission Range | 200–2500 nm | UV-Vis-NIR compatible |
| UV Cutoff | ~170–180 nm | Depending on wall thickness |
| Transmittance | >80% (200–2500 nm) | Measured in paired testing |
| Refractive Index | 1.4585 @ 589 nm | Stable across visible spectrum |
| Birefringence | None | Isotropic material |
| Fluorescence Background | Negligible | Suitable for sensitive fluorescence detection |
| Surface Finish | Optical polish (λ/4 @ 550 nm) | On all four sides (fluorescence type) |
Size of of Quartz UV Fluorescence Cuvettes with Lid
| Model | Description | Wavelength | Path Length | Volume | Transmittance | Outline Dimension |

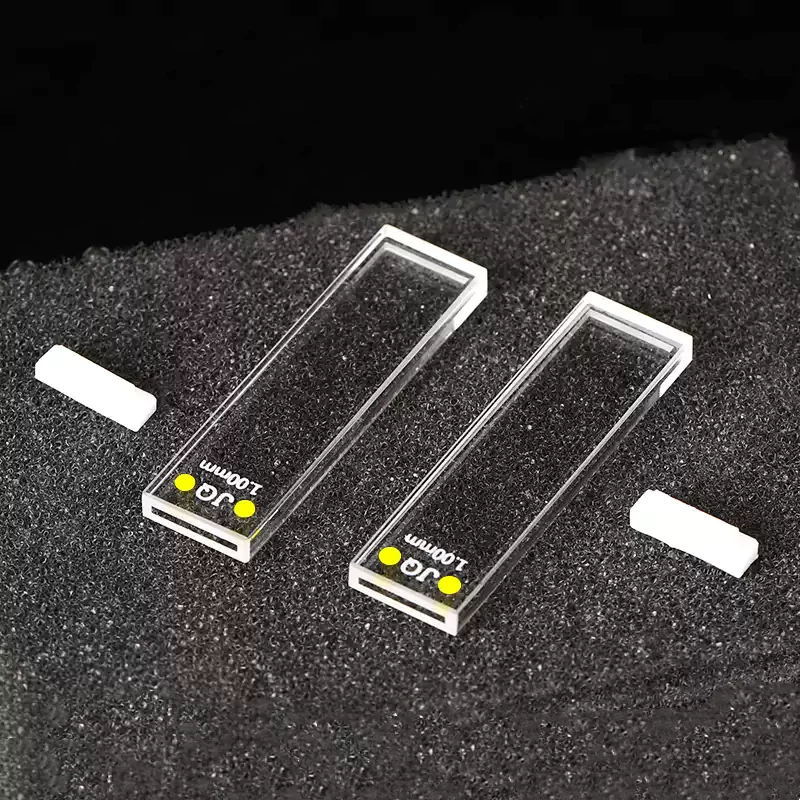

| AT-BSM-011-1 | 1mm Path Length Quartz UV Cuvette Fluorescence Cell with Lid | 200nm-2500nm | 1mm | 350μl | >80% (Paired Testing) | / |
| Model | Description | Wavelength | Path Length | Volume | Transmittance | Outline Dimension |
| AT-BSM-070 | 350μl Quartz UV Cuvette Fluorescence Cell with Lid | 200nm-2500nm | 1mm | 350μl | >80% (Paired Testing) | 12.5×3.5×45 mm |
How TOQUARTZ® Fluorescence Quartz UV Cuvettes with Lid
Solve Critical Laboratory Challenges
Fluorescence Quartz UV Cuvettes with Lid for Precision Biological Research
Key Advantages
-
Path Length Deviation ≤ ±0.1 mm
Ensures <2% absorbance deviation at 260nm for nucleic acid quantification. -
Background Fluorescence <0.002 A.U.
Minimizes signal interference in low-concentration DNA/RNA fluorescence assays. -
Buffer Compatibility Validated with 10+ Bioreagents
Stable in Tris, PBS, EDTA, and guanidine HCl without surface degradation.
TOQUARTZ® solution
A genomics lab in Toronto reported inconsistent DNA quantification using generic cuvettes due to path length variation.
After switching to TOQUARTZ® cuvettes with ±0.1 mm tolerance, their 260nm absorbance CV dropped from 5.6% to 1.1% across 12 replicates, improving qPCR input accuracy.
Quartz UV Fluorescence Cuvettes with Lid for Analytical Instrument Manufacturers
Key Advantages
-
Dimensional Tolerance Controlled to ±0.05 mm
Ensures seamless fit in automated spectrophotometer holders without jamming. -
Optical Transmission Variance <1.5% Across Batches
Supports consistent calibration curves in OEM instrument validation. -
Customizable Z-Dimension for Beam Alignment
Allows precise optical path matching for dual-beam and 90° fluorescence detection.
TOQUARTZ® solution
A German OEM faced 8% instrument rejection due to cuvette misalignment in auto-loaders. TOQUARTZ® delivered cuvettes with ±0.05 mm dimensional control, reducing misfit rate to <0.5% and enabling batch calibration with <1.2% transmission deviation.
Fluorescence UV Quartz Cuvettes with Lid for Pharmaceutical Quality Control
Key Advantages
-
PTFE Lid Sealing Loss Rate <0.3% Over 4 Hours
Maintains sample concentration stability during extended fluorescence assays. -
Compatible with 95% of Common Solvents
Validated against methanol, acetonitrile, DMSO, and acidic buffers at 25°C. -
Micro-Volume Design Down to 100 μL
Reduces reagent cost in high-throughput QC workflows without compromising accuracy.
TOQUARTZ® solution
A Japanese QC lab observed 7.8% signal drift in 3-hour fluorescence assays using volatile solvents. TOQUARTZ® cuvettes with PTFE lids maintained <0.3% evaporation loss, stabilizing assay results and passing FDA method validation for batch release.
Customization Services for TOQUARTZ®
Fluorescence Quartz UV Cuvette
Dimensional Customization
- Custom path lengths
- Specialized internal volumes
- Modified external dimensions
- Height and width adaptations
- Custom wall thickness
Design Adaptations
- Flow-through cuvette designs
- Custom lid configurations
- Special optical window arrangements
- Multi-compartment cuvettes
- Instrument-specific adaptations
Surface Treatments
- Enhanced optical polishing
- Black-walled cuvettes for fluorescence
- Anti-reflective coatings
- Frosted surfaces for specific applications
- Custom markings and calibration lines
TOQUARTZ® Custom Fluorescence Quartz UV Cuvette Development Process
Requirement Analysis
TOQUARTZ® begin by understanding your application needs for Fluorescence Quartz UV Cuvette design, including path length, lid type, and optical window configuration. Our engineers assess technical feasibility and recommend optimal material and geometry.
Technical Drawing & Engineering
Our team creates detailed CAD drawings of the custom Fluorescence Quartz UV Cuvette based on your specifications. We validate dimensions, tolerances, and optical paths to ensure compatibility with your instruments.
Prototype Fabrication
A small batch of Fluorescence Quartz UV Cuvettes is produced for initial testing and evaluation. This allows you to verify fit, transmission, and fluorescence background before mass production.
Quality Verification
Each prototype Fluorescence Quartz UV Cuvette undergoes dimensional inspection and optical testing. We measure transmittance, path length accuracy, and sealing performance to meet your QC standards.
Batch Production & Delivery
Upon approval, we proceed with full-scale production of your custom Fluorescence Quartz UV Cuvette. All units are batch-tested and shipped with documentation, ensuring traceability and consistency.
Usage Guide of Fluorescence Quartz UV Cuvettes
Cleaning Protocol
- Rinse immediately after use with appropriate solvent (usually the solvent used in analysis)
- For routine cleaning, use mild detergent solution followed by thorough rinsing with deionized water
- For persistent residues, soak in 10% nitric acid solution (avoid HF acid)
- Final rinse with spectroscopic-grade acetone or methanol for rapid drying
- Air dry in dust-free environment or use oil-free compressed air
Handling Procedures
- Always handle cuvettes by the non-optical surfaces (top and sides)
- Wear powder-free gloves when handling to prevent fingerprints and contamination
- Place cuvettes in holders gently to avoid chipping or scratching
- Fill to appropriate volume (typically 80% of capacity) to ensure proper measurement
- Ensure optical windows are clean and free from fingerprints before measurement
Storage Recommendations
- Store clean, dry cuvettes in original packaging or dedicated cuvette boxes
- Keep in dust-free environment at room temperature
- Avoid direct contact between optical windows and storage surfaces
- For long-term storage, consider using desiccated containers
- Inspect for dust or damage before use after prolonged storage
Maximizing Measurement Accuracy
- Equilibrate samples to room temperature before measurement
- Eliminate air bubbles by gentle tapping or brief centrifugation
- Maintain consistent orientation in spectrophotometer (align index mark)
- Use matched cuvettes for reference and sample when possible
- For low absorbance measurements, use longer path length cuvettes (10mm+)
Need a Custom Fluorescence Quartz UV Cuvette Solution?
From initial concept to final production, we partner with you to create solutions that meet your exact requirements.
Why Partner with TOQUARTZ
Direct Factory Advantage
As a direct manufacturer, we can cut out the numerous intermediate links.
Engineering Expertise
Technical team guides clients from material selection to design optimization, translating specs into deliverables.
Flexible Manufacturing
Handling standard & custom orders via small-batch expertise and prototyping rigor to meet urgent deadlines.
Quality
Assurance
Pre-shipment 3-step validation:
1. dimensional accuracy,
2. material purity ,
3. performance thresholds
Global Supply Chain
Reliable global logistics to industrial hubs (DE/US/JP/KR priority) with trackable milestones.
Releted Products
As a specialized manufacturer with direct factory capabilities, TOQUARTZ provides both standard and custom quartz solutions with engineering support throughout the specification and implementation process.
FAQ
Q: What is a Fluorescence Quartz UV Cuvette?
A: A Fluorescence Quartz UV Cuvette is a specialized optical cell made from high-purity fused quartz, designed to hold liquid samples for fluorescence spectroscopy and UV-Vis analysis. These cuvettes feature exceptional optical clarity in the UV-Vis-NIR range (200-2500nm) and typically include a lid to prevent contamination and evaporation during analysis.
Q: Why use a Fluorescence Quartz UV Cuvette with Lid?
A: Lids provide several advantages: 1) Prevent sample evaporation during measurements, ensuring concentration stability. 2) Reduce contamination from airborne particles or dust. 3) Minimize spillage risks during handling. 4) Enable secure sample storage for repeated measurements. 5) Necessary for volatile solvents to maintain sample integrity. The PTFE lids on TOQUARTZ® cuvettes offer excellent chemical resistance and sealing properties.
Q: What is the wavelength range for Quartz UV Fluorescence Cuvettes?
A: TOQUARTZ® Fluorescence Quartz UV Cuvettes offer a broad wavelength range of 200-2500nm, covering the UV, visible, and near-infrared regions. This extensive range makes them suitable for diverse spectroscopic applications, from DNA/protein analysis in the UV region to complex fluorescence studies across the visible spectrum.
Q: What path lengths are available for Fluorescence Quartz UV Cuvettes?
A: Standard TOQUARTZ® Fluorescence Quartz UV Cuvettes are available in 1mm, 2mm, 5mm, and 10mm path lengths. Custom path lengths from 0.5mm to 100mm can be manufactured to order. The choice of path length depends on sample concentration and application requirements, with longer path lengths suitable for dilute solutions and shorter path lengths for concentrated samples.
Q: What is the absorbance range of Fluorescence Quartz UV Cuvettes?
A: TOQUARTZ® Fluorescence Quartz UV Cuvettes typically support absorbance measurements in the range of 0-3.0 absorbance units (A.U.), though the practical upper limit depends on the spectrophotometer’s capabilities. For highly accurate work, measurements in the 0.1-1.5 A.U. range are recommended. Custom high-transmission cuvettes are available for applications requiring detection of very low absorbance values.
