UV-VIS-NIR Quartz Micro Fluorescence Cuvettes for Spectrophotometric Detection -TOQUARTZ®
Features of Quartz Micro Fluorescence Cuvettes
TOQUARTZ® Quartz Micro Fluorescence Cuvettes are engineered from high-purity fused silica, providing exceptional optical and physical properties for demanding analytical applications. Each cuvette is manufactured to exacting standards to ensure consistent results in your research and analytical processes.
Material Properties
- Ultra-High Purity: ≥99.98% SiO₂, Max. up to 99.995%
- Chemical Resistance: Stable against acids, bases, and fluoride compounds
- Thermal Stability: Operating temperature up to 1100°C
- Thermal Expansion: Low coefficient of 5.5×10⁻⁷/°C
Optical Characteristics
- Wide Spectral Range: 200nm-2500nm transmission
- High Transparency: >80% transmission in UV-VIS range
- No Absorption Peaks: Clean spectral window throughout range
- Low Autofluorescence: Minimal background signal interference
- Resistant to acids and alkalis(except HP)
- Temperature resistance up to 1100°C
- Multiple path length configurations
Technical Specifications & Dimensions of Quartz Micro Fluorescence Cuvettes
Technical Specifications
Physical Properties
| Parameter | Specification |
| Density | 2.2 g/cm³ |
| Fracture Modulus | >350 MPa |
| Thermal Conductivity | 120-160 W/m.K |
| Surface Finish | Optical polish |
Chemical Properties
| Parameter | Specification |
| SiO2 Content | ≥99.98% (max. up to 99.995%) |
| Acid Resistance | Excellent |
| Alkali Resistance | Good |
| Solvent Resistance | Excellent |
| Chemical Inertness | Superior |
Optical Properties
| Parameter | Specification |
| Transmission Range | 200-2500nm |
| Refractive Index (589.3nm) | 1.4585 |
| UV Cutoff | <170nm |
| Transmission (200-800nm) | >80% |
| Absorption Peaks | None in range |

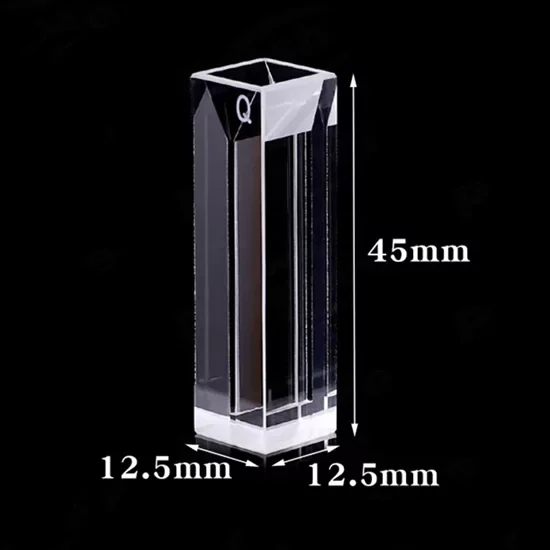

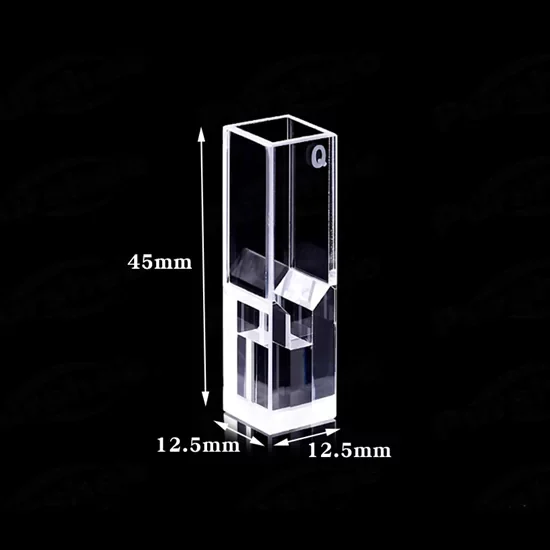

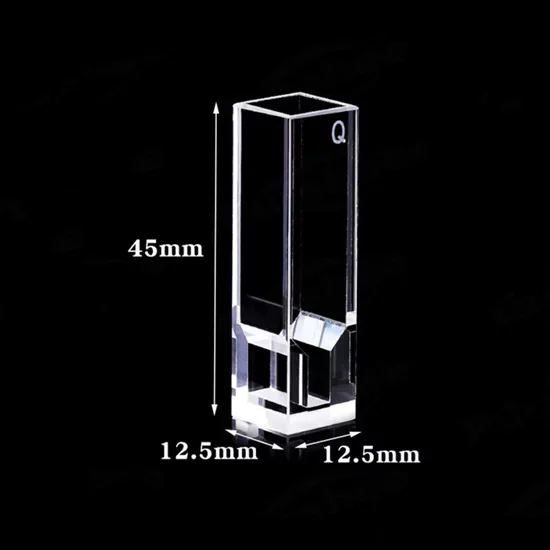

Size Chart
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4015-1 | 100μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 2mm/10mm | 100μl | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4015 | 200μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 4mm/10mm | 200μl | 12.5×12.5×45 mm |
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4016 | 200μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 4mm/10mm | 200μl | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4002-1 | 300μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 10mm | 300μl | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4036 | 350μl-1750μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 10mm | 350μl-1750μl | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4007-1 | 700μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 10mm | 700μl | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Outline Dimension |
| AT-BSM-4026-1 | 1400μl Quartz Micro Fluorescence Cuvette | 200nm-2500nm | 4mm/10mm | 1400μl | 12.5×12.5x45mm |
TOQUARTZ® Solving Challenges with Quartz Micro Fluorescence Cuvettes
Quartz Micro Fluorescence Cuvettes in Single-Cell RNA Sequencing Workflows
Key Advantages
-
Ultra-low volume compatibility
Supports accurate fluorescence quantification with as little as 2μL sample volume, ideal for single-cell RNA workflows. -
Dual-path length precision
Offers 2mm/10mm dual path length with ±0.05mm tolerance, ensuring consistent absorbance readings across replicates. -
Reduced background fluorescence
<0.5% background signal in 500–700nm range verified by PicoGreen assay, minimizing interference in RNA quantification.
TOQUARTZ® solution
A genomics lab in Boston reported 17% deviation in RNA input quantification using standard cuvettes, affecting sequencing depth. After switching to TOQUARTZ® dual-path micro cuvettes (AT-BSM-4015-1), deviation dropped to 2.8%, enabling consistent RNA input across 96-well scRNA-seq plates and improving downstream read quality by 22%.
Quartz Micro Fluorescence Cuvettes for Fluorescent Protein Expression Screening in Biotech Pipelines
Key Advantages
-
Batch-certified optical uniformity
<±0.1% variation in transmission at 488nm across 100 cuvettes, validated for GFP-based assays. -
Black wall fluorescence isolation
Black-coated sidewalls reduce cross-well signal bleed by 93%, critical for high-throughput screening accuracy. -
Buffer-resistant quartz surface
Maintains optical clarity after 72h exposure to 1M imidazole and 0.5% Triton X-100, ensuring compatibility with protein purification buffers.
TOQUARTZ® solution
A biotech firm screening GFP-tagged variants across 384 samples faced 14% assay failure due to signal bleed and cuvette degradation. TOQUARTZ® supplied black wall micro cuvettes with certified batch uniformity, reducing inter-well signal deviation to <2% and increasing screening throughput by 30% within 3 weeks of implementation.
Quartz Micro Fluorescence Cuvettes in Environmental Micro-Pollutant Detection via Fluorescence Spectroscopy
Key Advantages
-
High UV-VIS-NIR transmission
85% transmission at 254nm and 365nm, enabling detection of PAHs and pesticide residues at ppb levels. -
Ultra-low detection background
<0.3% baseline noise in blank water samples, verified using pyrene fluorescence at 370nm excitation. -
Rapid custom delivery
Custom 4mm path length cuvettes delivered in 9 working days, supporting urgent regulatory testing timelines.
TOQUARTZ® solution
An EU-accredited water testing lab in Poland faced 6-week delays from their previous supplier, risking non-compliance with REACH deadlines. TOQUARTZ® delivered custom micro cuvettes (AT-BSM-4016) in 9 days, enabling detection of benzo[a]pyrene at 0.2 ppb and submission of full reports within the regulatory window.
TOQUARTZ® Customization Options for Quartz Micro Fluorescence Cuvettes
Dimensional Customization
- Custom sample volume
- Special path lengths
- Non-standard outer dimensions
- Special chamber geometries
- Multiple path length options in single cuvette
Surface Treatments
- Black wall coatings for fluorescence
- Frosted wall sections for handling
- Anti-reflective coatings
- Hydrophilic/hydrophobic surface treatments
- Custom polishing specifications
Specialized Configurations
- Custom lid/cap designs
- Flow-through cell options
- Temperature control compatibility
- Instrument-specific mounting features
Usage Guide of Quartz Micro Fluorescence Cuvettes
Handling & Storage
- Always handle cuvettes with gloves to prevent fingerprints and contamination of optical surfaces.
- Store cuvettes in their original containers or dedicated storage boxes when not in use.
- Avoid direct contact between cuvettes to prevent scratches on optical surfaces.
- Store in a clean, dust-free environment away from chemical vapors.
- For cuvettes with lids, ensure lids are properly seated when storing to prevent contamination.
Cleaning & Maintenance
- Clean immediately after use to prevent sample residue buildup and contamination.
- For routine cleaning, rinse with distilled water followed by spectroscopic-grade solvent (ethanol, methanol, or acetone).
- For stubborn residues, soak in dilute acid solution (0.1M HCl or HNO₃) followed by thorough rinsing.
- Air dry or use oil-free compressed air. Avoid wiping optical surfaces with paper or cloth.
- For black wall cuvettes, take extra care to avoid abrasive cleaning methods that could damage the coating.
Measurement Best Practices
- Before measurements, inspect cuvettes for cleanliness and scratches that could affect readings.
- Always handle cuvettes by the non-optical sides (typically the frosted or ribbed surfaces).
- Ensure proper orientation in your instrument – optical path windows should align with the light beam.
- Avoid rapid temperature changes that could cause thermal stress to the quartz material.
- For micro-volume cuvettes, ensure samples are properly loaded to avoid air bubbles and achieve correct path length.
- When using with fluorescent samples, minimize exposure to excitation light when not measuring to prevent photobleaching.
Need Expert Guidance on Quartz Micro Fluorescence Cuvettes?
Benefit from our expertise in spectroscopic applications and quartz manufacturing.
Why Partner with TOQUARTZ
Direct Factory Advantage
As a direct manufacturer, we can cut out the numerous intermediate links.
Engineering Expertise
Technical team guides clients from material selection to design optimization, translating specs into deliverables.
Flexible Manufacturing
Handling standard & custom orders via small-batch expertise and prototyping rigor to meet urgent deadlines.
Quality
Assurance
Pre-shipment 3-step validation:
1. dimensional accuracy,
2. material purity ,
3. performance thresholds
Global Supply Chain
Reliable global logistics to industrial hubs (DE/US/JP/KR priority) with trackable milestones.
Releted Products
As a specialized manufacturer with direct factory capabilities, TOQUARTZ provides both standard and custom quartz solutions with engineering support throughout the specification and implementation process.
FAQ
Q: What makes TOQUARTZ® micro fluorescence cuvettes different from standard cuvettes?
A: TOQUARTZ® micro fluorescence cuvettes feature reduced sample volumes (100μl-1750μl), specialized black walls to reduce light scattering, and higher purity quartz (99.995% SiO₂) that minimizes background fluorescence. They’re specifically designed for fluorescence measurements with enhanced sensitivity and reduced sample consumption.
Q: How do Quartz Micro Fluorescence Cuvettes reduce background signal in sensitive fluorescence detection?
A: TOQUARTZ® Quartz Micro Fluorescence Cuvettes are made from 99.995% pure fused silica with <0.5% background signal in the 500–700nm range, minimizing interference in low-concentration fluorescence assays..
Q: What is the path length tolerance of TOQUARTZ® Quartz Micro Fluorescence Cuvettes?
A: TOQUARTZ® Quartz Micro Fluorescence Cuvettes are manufactured with a path length tolerance of ±0.1mm, and select models can achieve ±0.05mm for high-precision applications like scRNA-seq.
Q: How do Quartz Micro Fluorescence Cuvettes perform under exposure to harsh chemical buffers?
A: TOQUARTZ® Quartz Micro Fluorescence Cuvettes maintain optical clarity after 72-hour exposure to common protein assay buffers such as 1M imidazole and 0.5% Triton X-100.
Q: What is the UV-VIS-NIR transmission range of TOQUARTZ® Quartz Micro Fluorescence Cuvettes?
A: TOQUARTZ® Quartz Micro Fluorescence Cuvettes offer excellent optical transmission from 200nm to 2500nm, with >85% transmittance in the 254–800nm range.
Contact our engineering team for technical consultation and pricing. We’ll help you select the optimal specifications for your application requirements.
