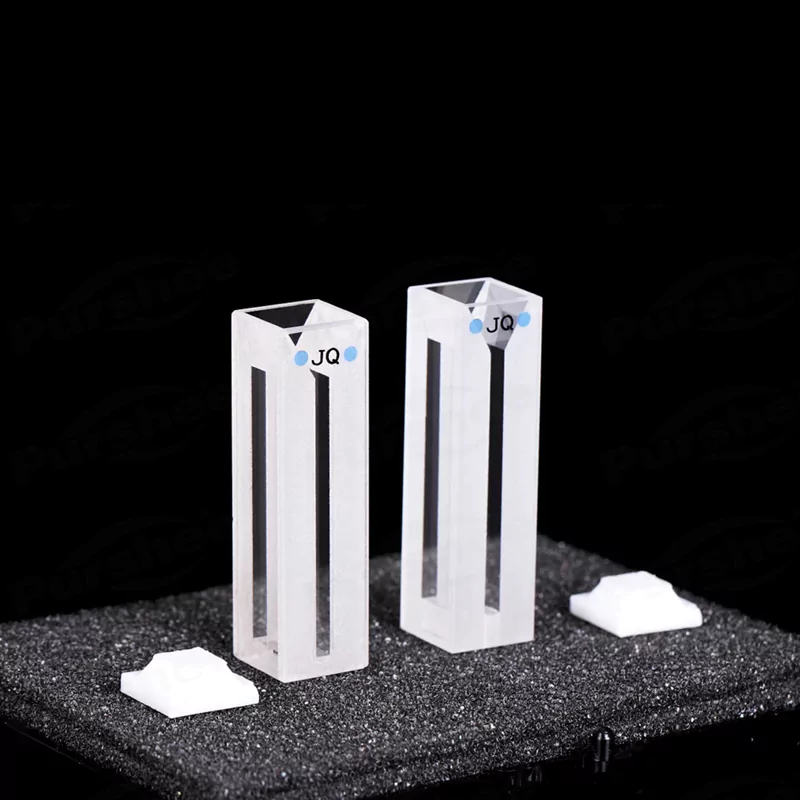

Sub-micro Volume Quartz Cuvette Cell for Micro-volume Analysis -TOQUARTZ®
Available in standard sizes with quick shipping and custom specifications upon request.
Features of Sub-micro Quartz Cuvette
TOQUARTZ® sub-micro quartz cuvettes combine exceptional material properties with precision manufacturing to deliver reliable spectroscopic results with minimal sample volume requirements. The following features make our cuvettes ideal for analytical instrumentation and research applications.
Micro-volume Capacity
Minimal sample volume requirement (20μL-2100μL) preserves valuable samples while maintaining measurement accuracy, perfect for DNA/RNA analysis.
Optical Transmission
Exceptional wavelength range from 200nm to 2500nm with no absorption peaks, ideal for UV, visible, and NIR spectroscopy applications.
Thermal Stability
Withstands temperatures up to 1100°C with low thermal expansion coefficient (5.5×10⁻⁷ /°C), allowing use in high-temperature applications.
High Material Purity
＞99.98% SiO₂ purity ensures excellent chemical resistance against acids, bases, and most solvents, maintaining sample integrity during analysis.
- Volume Capacity: 20μL-2100μL
- Wavelength Range: 200nm-2500nm
- Material Purity: ＞99.98% SiO₂
Technical Specifications and Dimensionsof Sub-micro Quartz Cuvette
Technical Specifications of Sub-micro Volume Quartz Cuvette
| Parameter | Specification | Notes |
| Material | High purity quartz (＞99.98% SiO₂) | UV-grade optical quality |
| Path Length Options | 0.2mm, 0.5mm, 1mm, 2mm, 5mm, 10mm | Custom path lengths available |

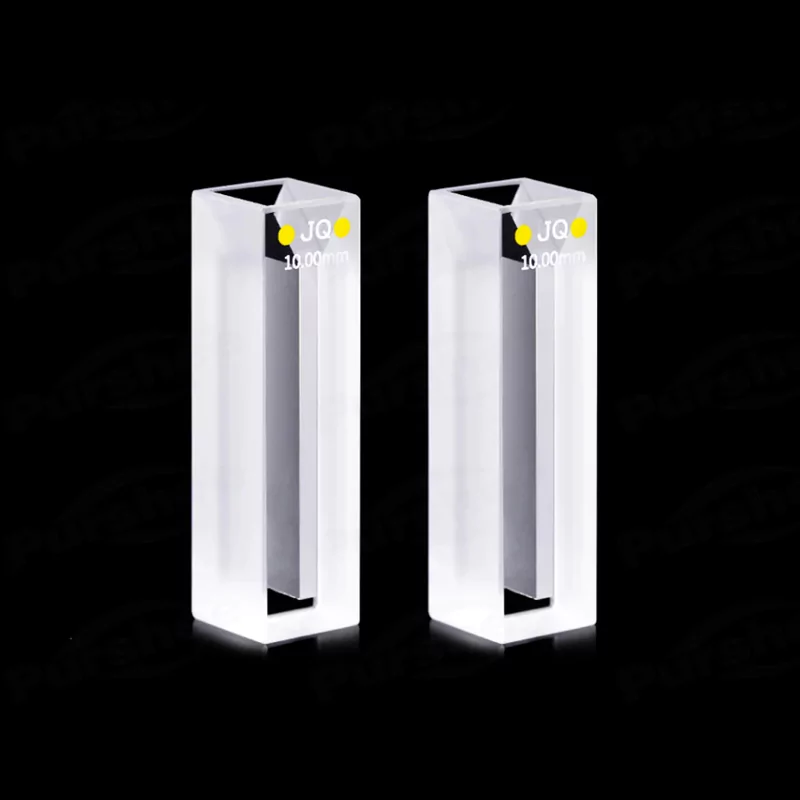

| Internal Volume | 20μL – 2100μL | Varies with path length and design |
| Dimensional Tolerance | ±0.1mm standard | ±0.05mm available for select models |
| Wavelength Range | 200nm – 2500nm | UV, Visible, NIR compatible |
| Optical Transmission | >80% @200nm | Excellent for UV applications |
| Thermal Expansion Coefficient | 5.5×10⁻⁷ /°C | Stable in varying temperatures |
| Maximum Operating Temperature | 1100°C | Suitable for high-temperature applications |
| Surface Finish | Polished optical faces | Two-sided or four-sided optical windows |
| Chemical Resistance | Resistant to acids, bases, and most solvents | Except HF and hot phosphoric acid |
| Lid Options | PTFE lids, stopper lids, screw caps | For sample containment and evaporation prevention |
Size of of Sub-micro Quartz Glass Cuvette
| Item no. | Description | Capacity | Path Length | LxWxH | Wavelength Range |

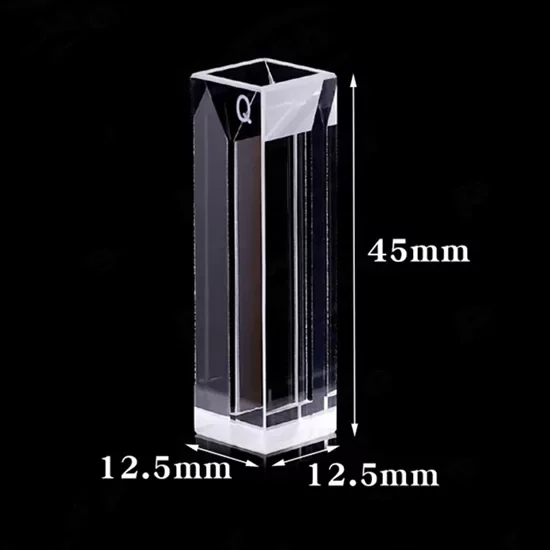

| AT-BSM-4001 | Micro quartz fluorescence cuvette with lid | 350ul | 10mm | 12.5×12.5x45mm | 200nm-2500nm |
| Item no. | Description | Capacity | Path Length | LxWxH | Wavelength Range |
| AT-BSM-4002 | Micro quartz fluorescence cuvette with lid | 700ul | 10mm | 12.5×12.5x45mm | 200nm-2500nm |
| Item no. | Description | Capacity | Path Length | LxWxH | Wavelength Range |
| AT-BSM-4002-1 | Micro quartz fluorescence cuvette | 300ul | 4mm/10mm | 12.5×12.5x45mm | 200nm-2500nm |
| Item no. | Description | Capacity | Path Length | LxWxH | Wavelength Range |

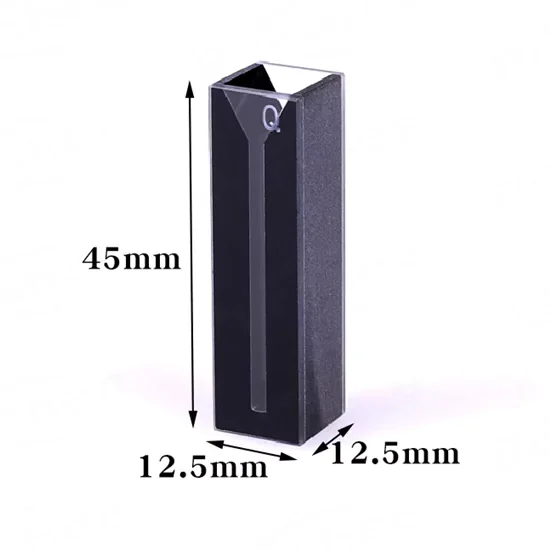

| AT-BSM-4003 | 700ul Micro cell with black walls and lid/ 2mm Inside Width | 0.7ml | 10mm | 12.5×12.5x45mm | 200nm-2500nm(Quartz); 350nm-2000nm(Glass; Slit: 2mm |
| Item no. | Description | Capacity | Path Length | LxWxH | Wavelength Range |
| AT-BSM-4003-1 | Micro cell with black walls | 350ul | 10mm | 12.5×12.5x45mm | 200nm-2500nm(Quartz); 350nm-2000nm(Glass); Slit: 1mm |
TOQUARTZ® Solving Analytical Challenges with Sub-micro Quartz Cuvettes

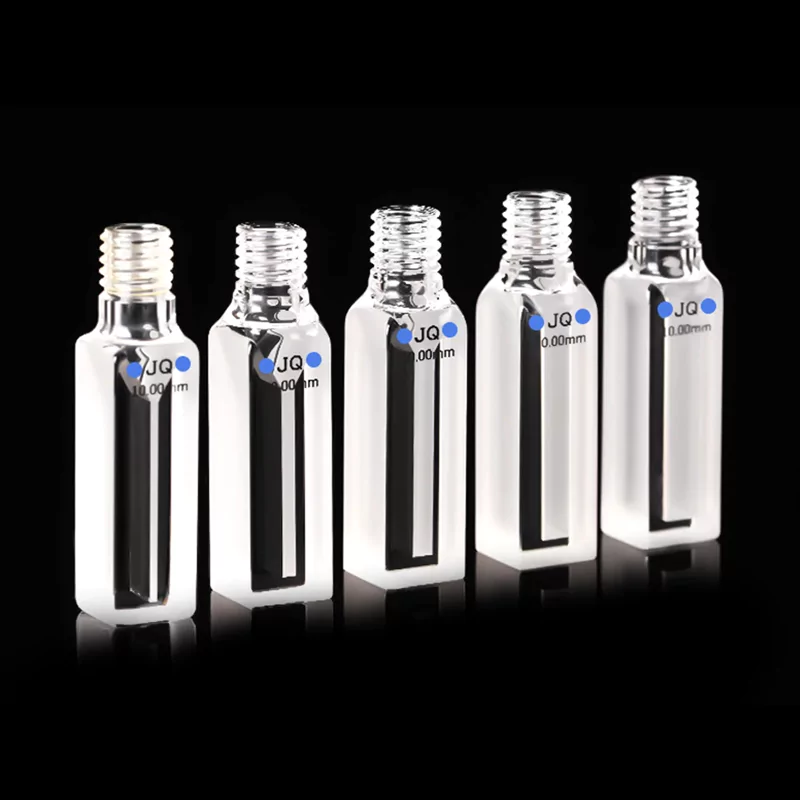

Sub-micro Quartz Cuvette Cell in Analytical Instrumentation
Key Advantages
- Optical path deviation <±0.1mm ensures instrument calibration stability across batches.
- 200–2500nm verified transmission range supports full-spectrum UV-VIS-NIR instrumentation.
- Dimensional repeatability >98.5% across 500-unit lots reduces instrument alignment errors.
TOQUARTZ® solution
A leading European analytical instrument manufacturer reported inconsistent readings with ±15% measurement error due to path length variations in their previous supplier's sub-micro cuvettes.
TOQUARTZ® provided custom sub-micro quartz cuvettes with ±0.1mm tolerance, reducing measurement error to less than 2% and improving overall instrument reliability.
Sub-micro Fused Quartz Cuvettes in Life Science Research
Key Advantages
- Enables accurate DNA quantification at 260nm with as low as 20μL sample volume.
- Maintains <2% absorbance deviation in enzyme kinetics assays across 0.5mm–2mm pathlengths.
- Compatible with fluorescence detection at 520–700nm with <0.5% background signal interference.
TOQUARTZ® solution
A biotech lab performing RNA quantification at 260nm–280nm reported inconsistent readings due to cuvette autofluorescence.
TOQUARTZ® supplied low-background sub-micro quartz cuvettes with verified <0.5% background signal, improving assay reproducibility by 18% across 3 instruments.
Sub-micro Quartz Cuvettes in Pharmaceutical Quality Control
Key Advantages
- Maintains optical clarity >85% @200nm after 100+ solvent exposure cycles (IPA, DMSO, NaOH).
- Supports accurate absorbance readings in 0.2mm pathlength for API concentrations >10mg/mL.
- Withstands pH 1–13 exposure without surface degradation in 72-hour stability tests.
TOQUARTZ® solution
A pharmaceutical QC team required cuvettes for high-concentration API testing in alkaline buffers.
TOQUARTZ® provided sub-micro quartz cuvettes with verified pH 13 resistance, enabling 72-hour stability testing without optical degradation, reducing retest frequency by 40%.

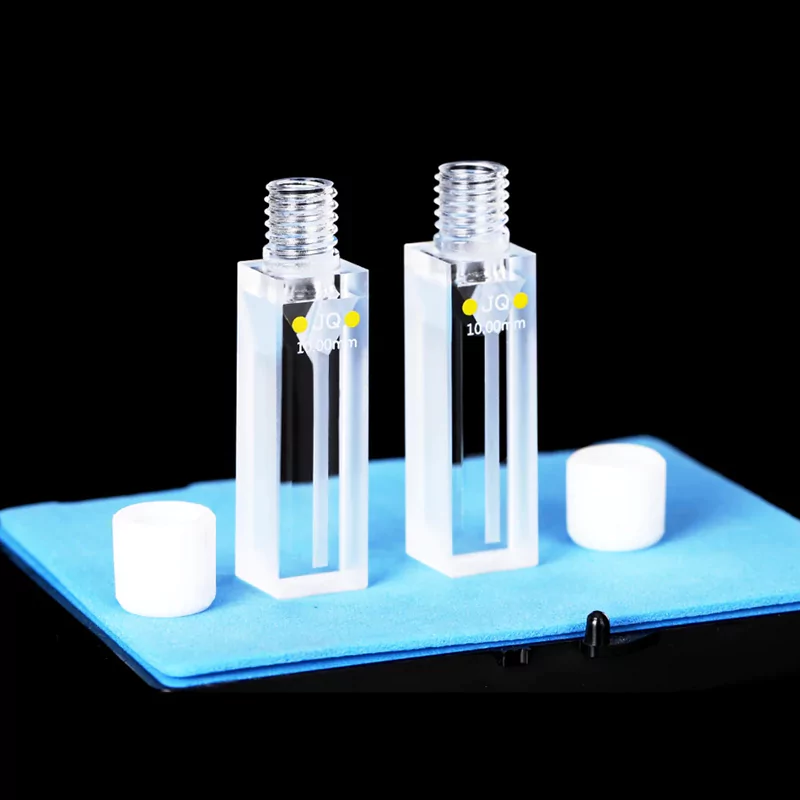

Customization Services for TOQUARTZ® Sub-micro Quartz Cuvette Cells
Dimensional Customization
- Custom path lengths
- Specialized internal volumes
- Modified external dimensions
- Adaptations for specific instruments
Design Adaptations
- Flow-through configurations
- Multiple optical windows
- Special geometries (Z-path, triangular)
- Integrated ports or connections
Surface Treatments
- Specialized optical coatings
- Anti-reflection treatments
- Hydrophobic surface modifications
- Precision optical polishing
TOQUARTZ® Customization Development Process
Requirements Discussion
Detailed consultation to understand application needs
Design Proposal
Technical drawings and specifications review
Prototype Development
Rapid production of sample units for testing
Production & QC
Full-scale manufacturing with quality assurance
Usage Guide of Sub-micro Fused Quartz Cuvettee
How to Clean Sub-micro Quartz Cuvettes
- 1. Rinse immediately after use with appropriate solvent (typically deionized water or analytical grade ethanol)
- 2. For stubborn residues, soak in 0.1M HCl solution (avoid HF which will damage quartz)
- 3. For organic contaminants, use mild detergent solution followed by thorough solvent rinse
- 4. Rinse 5-10 times with deionized water
- 5. Allow to air dry in dust-free environment or use filtered compressed air
- 6. For critical applications, verify cleanliness with baseline measurement
Solvent Compatibility
- Water-based buffers and solutions
- Alcohols (ethanol, methanol, isopropanol)
- Most organic solvents (acetone, acetonitrile, DMSO)
- Dilute acids and bases (except HF)
- Saline solutions
Special Considerations for Air Free Cuvettes
Always handle cuvettes by the non-optical sides to avoid fingerprints and contamination
Use lint-free gloves or finger cots when direct handling is necessary
Store in original packaging or dedicated cuvette holders
Keep in dust-free, dry environment when not in use
Avoid rapid temperature changes which may cause thermal stress
Inspect optical surfaces before use under good illumination
Establish regular cleaning protocols in your laboratory procedures
Path Length Verification
Use interference method with monochromatic light source
Verify with standard reference materials (e.g., potassium dichromate solutions)
Use calibrated micrometer for physical measurement when possible
Document verification in laboratory records for traceability
Extending Cuvette Lifespan
Clean immediately after use before samples can dry or adhere
Avoid scratching optical surfaces during cleaning
Dedicate specific cuvettes to specific applications when possible
Store with compatible stoppers or caps to prevent dust accumulation
Implement regular inspection protocol for optical clarity
Need Technical Consultation for Your Sub-micro Quartz Cuvette Requirements?
With expertise in optical materials and spectroscopic applications, we help clients optimize sub-micro quartz cuvettes for their specific requirements.
Why Partner with TOQUARTZ
Direct Factory Advantage
As a direct manufacturer, we can cut out the numerous intermediate links.
Engineering Expertise
Technical team guides clients from material selection to design optimization, translating specs into deliverables.
Flexible Manufacturing
Handling standard & custom orders via small-batch expertise and prototyping rigor to meet urgent deadlines.
Quality
Assurance
Pre-shipment 3-step validation:
1. dimensional accuracy,
2. material purity ,
3. performance thresholds
Global Supply Chain
Reliable global logistics to industrial hubs (DE/US/JP/KR priority) with trackable milestones.
Releted Products
As a specialized manufacturer with direct factory capabilities, TOQUARTZ provides both standard and custom quartz solutions with engineering support throughout the specification and implementation process.
FAQ
Q: How do I clean sub-micro quartz cuvettes without damaging them?
A: Clean immediately after use with appropriate solvent rinses (water, ethanol, or acetone). For protein residues, use mild detergent solution. Never use hydrofluoric acid or abrasive materials. Rinse thoroughly with deionized water and air dry in a dust-free environment. Avoid touching optical surfaces.
Q: What is the wavelength range for sub-micro quartz cuvettes?
A: TOQUARTZ® sub-micro quartz cuvettes transmit light from 200nm to 2500nm, covering UV, visible, and near-infrared regions. This makes them suitable for a wide range of spectroscopic applications including UV absorbance, visible spectroscopy, and NIR analysis, unlike glass cuvettes which absorb UV light.
Q: What solvents are compatible with sub-micro quartz cuvettes?
A: TOQUARTZ® Sub-micro quartz cuvettes are compatible with most laboratory solvents including water, alcohols, acetone, DMSO, most acids and bases. They are NOT compatible with hydrofluoric acid (HF) and hot concentrated phosphoric acid, which can etch or damage quartz surfaces.
Q: How accurate is the path length in sub-micro quartz cuvettes?
A: TOQUARTZ® sub-micro quartz cuvettes feature path length accuracy of ±0.1mm standard, with ±0.05mm available for select models. This precision ensures reliable quantitative analysis, especially important for applications like DNA/RNA concentration determination where Beer-Lambert calculations rely on accurate path length.
Q: Are sub-micro quartz cuvettes reusable?
A: Yes, sub-micro quartz cuvettes are fully reusable with proper cleaning and maintenance. Their chemical resistance and durability make them suitable for repeated use, providing significant cost advantages over disposable options, particularly for routine analytical procedures.
