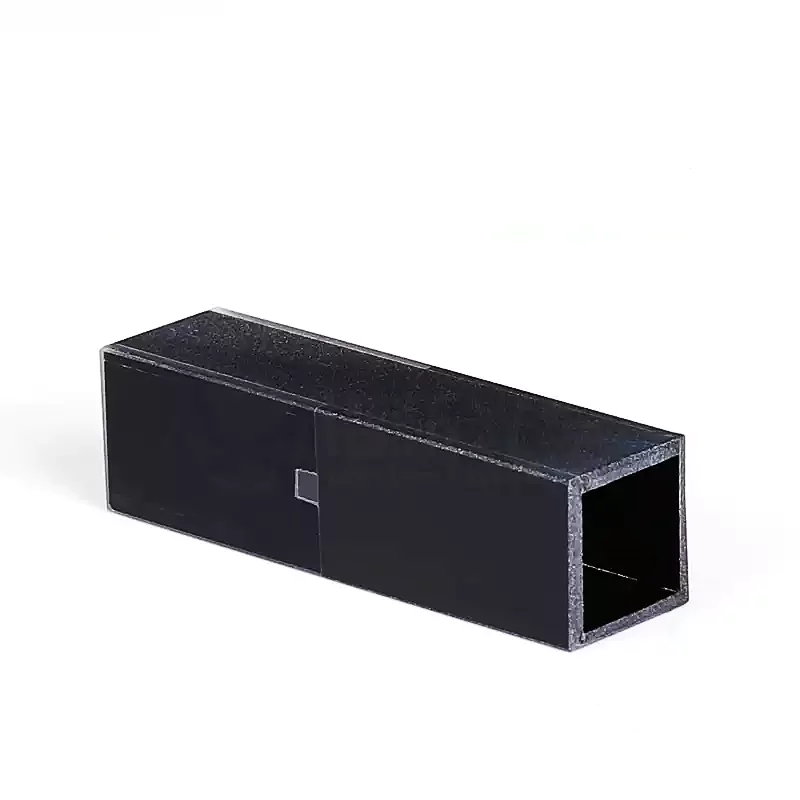

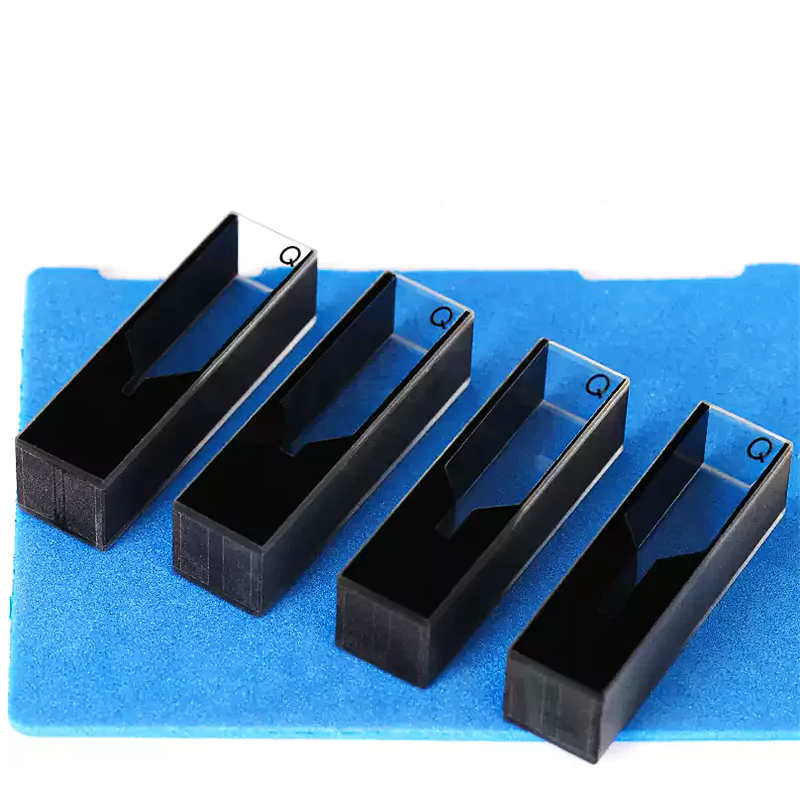

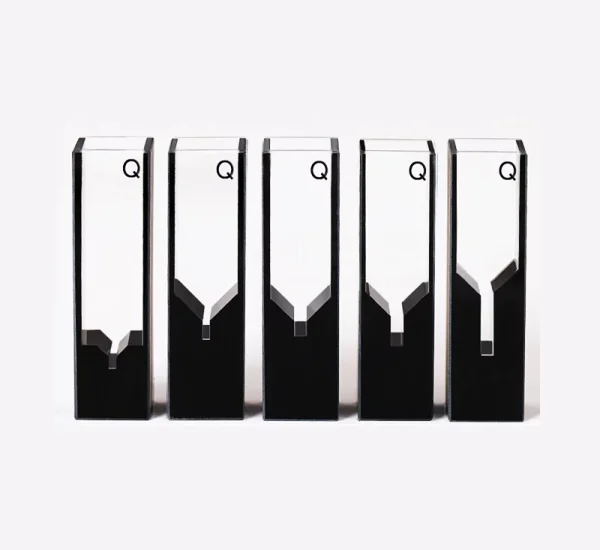

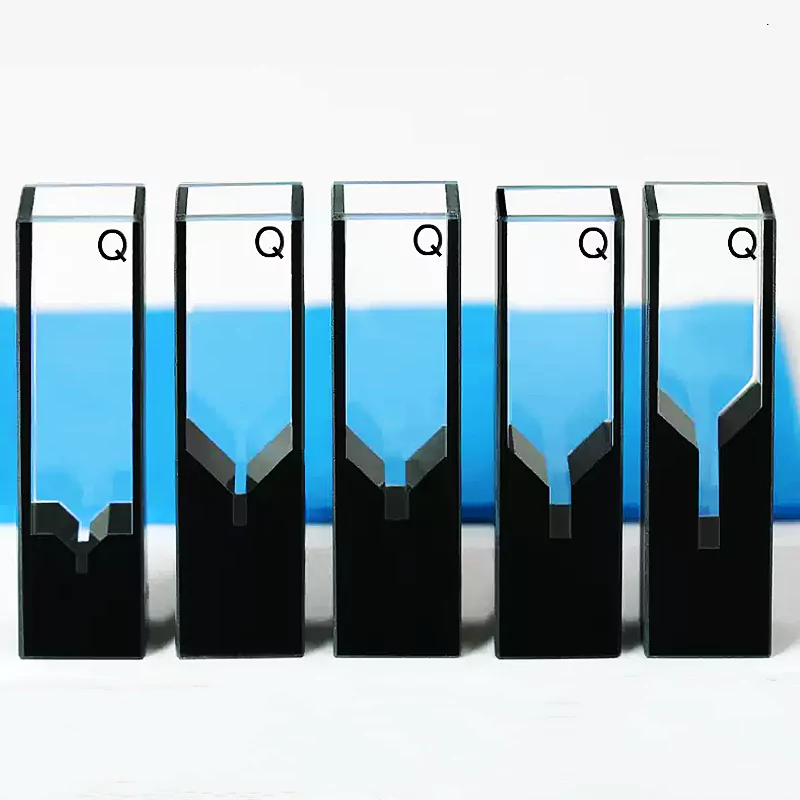

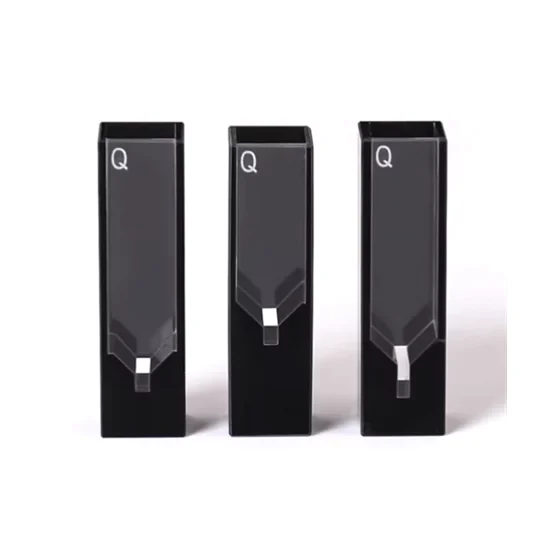

Signal-Enhanced Quartz Micro Cuvette with Black Walls for Spectroscopy Applications -TOQUARTZ®
Features of Quartz Micro Cuvette with Black Walls
TOQUARTZ® black wall quartz micro cuvettes are manufactured to precise specifications for demanding analytical applications in spectroscopy. These cuvettes combine the superior optical properties of high-purity quartz with specialized design for micro-volume analysis.
Optical Performance
- Wide spectral range from 200nm to 2500nm with no absorption peaks
- Black walls reduce stray light and minimize background interference
- Polished optical surfaces for minimal light scattering and accurate readings
- Optimized for micro-volume analysis from 20μL to 200μL sample sizes
Material Properties
- High-purity synthetic quartz with ≥99.98% SiO₂ content
- Excellent chemical resistance to acids, bases, and organic solvents
- High thermal stability up to 100°C for routine laboratory use
- Precision manufacturing with dimensional tolerances within ±0.1mm
- Precision machining for dimensional accuracy
- Individual inspection for defects and optical clarity
- Rigorous quality control and optical testing
Technical Specifications & Dimensions of Quartz Micro Cuvette with
Black Walls
Technical Specifications
Physical Properties
| Parameter | Specification |
| Material | High-purity quartz (≥99.98% SiO2) |
| Tensile Strength | 50 MPa |
| Density | 2.2 g/cm³ |
| Thermal Expansion Coefficient | 5.5×10-7/℃ |
| Surface Finish | Polished optical faces |
| Wall Treatment | Black coating for light isolation |
Optical Properties
| Parameter | Specification |
| Transmission Range | 200-2500nm |
| UV Cutoff | <190nm |
| Refractive Index | 1.46 at 589.3nm |
| Dispersion | Abbe Value = 67.8 |
| Optical Homogeneity | ≤5×10⁻⁶ |
| Stray Light Reduction | >99% with black walls |
Chemical Properties
| Parameter | Specification |
| Acid Resistance | Excellent (except HF) |
| Alkali Resistance | Good up to pH 12 |
| Solvent Compatibility | Compatible with most organic solvents |
| Biocompatibility | Inert, non-reactive with biological samples |
Size Charts
| Model | Description | Wavelength | Path Length | Volume | Thermal Stability | Outline Dimension |

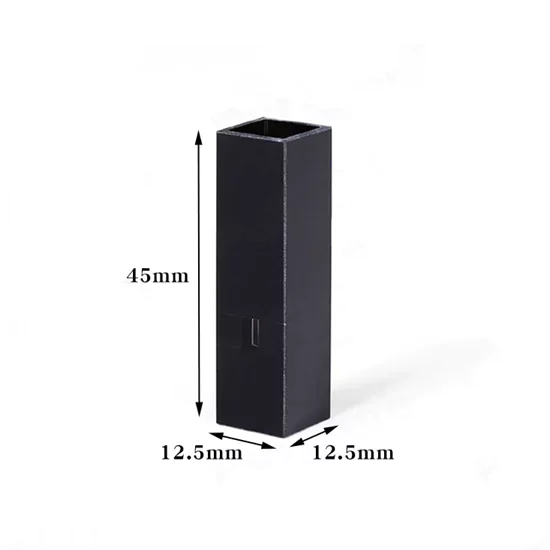

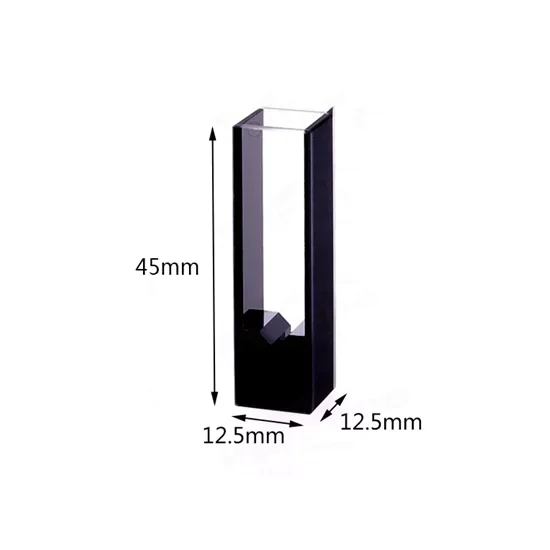

| AT-BSM-4021 | 20μl-200μl Quartz Micro Cuvette with Black Walls | 200nm-2500nm | 10mm | 20μl-200μl | 100℃ | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Thermal Stability | Outline Dimension |
| AT-BSM-4010-1 | 50μl Quartz Micro Cuvette with Black Walls | 200nm-2500nm | 10mm | 50μl | 100℃ | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Thermal Stability | Outline Dimension |
| AT-BSM-4041 | 50μl/100μl Quartz Micro Cuvette with Black Walls | 200nm-2500nm | 10mm | 50μl/100μl | 100℃ | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Thermal Stability | Outline Dimension |

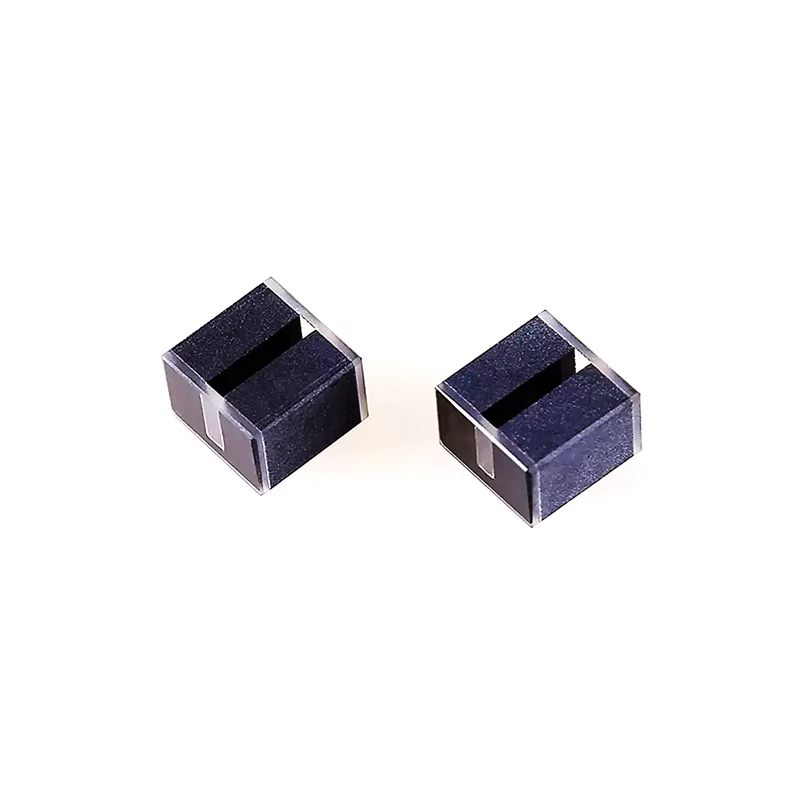

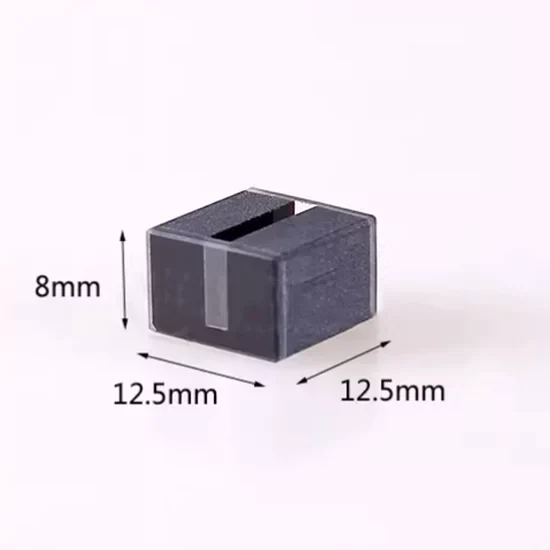

| AT-BSM-4040 | 106μl Quartz Micro Cuvette with Black Walls | 200nm-2500nm | 10mm | 106μl | 100℃ | 12.5×12.5x8mm |
TOQUARTZ® Solving Critical Challenges with Quartz Micro Cuvette with Black Walls
Quartz Micro Cuvette with Black Walls in Forensic Toxicology Screening
Key Advantages
-
Minimized false positives in fluorescence drug assays
Black walls reduced background signal by 78% in 532nm benzodiazepine screening. -
Stable readings in low-volume plasma samples
Maintains signal integrity in 50μL samples with <2% variation across replicates. -
Reduced spectral interference from biological matrices
Suppressed matrix-induced stray light by 65% compared to clear quartz cuvettes.
TOQUARTZ® solution
A forensic toxicology lab in Germany reported inconsistent results in saliva-based benzodiazepine screening using standard cuvettes, with a 17.6% false positive rate. After switching to TOQUARTZ® black wall micro cuvettes, background interference dropped significantly, reducing false positives to 2.1% and improving case report accuracy within 3 weeks of implementation.
Quartz Micro Cuvette with Black Walls in Photostability Testing of Light-Sensitive APIs
Key Advantages
-
Ambient light exclusion during UV exposure
Black walls blocked >92% of lateral light intrusion in 10mm pathlength tests. -
Improved accuracy in degradation kinetics
Reduced absorbance deviation by 6.3% in 72-hour photostability trials. -
Preserved spectral fidelity in micro-volume solvents
Maintained <1.5% signal drift in 100μL methanol-based API solutions.
TOQUARTZ® solution
A Japanese pharmaceutical R&D team observed overestimated degradation rates (avg. +9.1%) in UV absorbance tests of a photosensitive API using clear cuvettes. After adopting TOQUARTZ® black wall micro cuvettes, degradation curves aligned with HPLC benchmarks, reducing deviation to 1.2% and ensuring ICH Q1B photostability compliance for regulatory submission.
Quartz Micro Cuvette with Black Walls in Aflatoxin Fluorescence Detection for Food Safety Labs
Key Advantages
-
Enhanced detection of aflatoxin B1 at sub-ppb levels
Increased fluorescence signal-to-noise ratio by 6.8× at 365nm excitation. -
Suppressed solvent-induced background fluorescence
Reduced baseline noise by 71% in methanol-extracted peanut samples. -
Consistent quantification in 50μL micro-extracts
Achieved <3% RSD across 5 replicates at 0.05 ppb concentration.
TOQUARTZ® solution
A Polish food safety lab struggled to detect aflatoxin B1 below 0.2 ppb in corn flour using standard cuvettes, with high background from methanol matrix. After switching to TOQUARTZ® black wall micro cuvettes, baseline noise dropped by 71%, enabling consistent detection at 0.05 ppb and passing EU Regulation No 1881/2006 compliance testing in under 10 days.
TOQUARTZ® Customization Options for Quartz Micro Cuvette with
Black Walls
Dimensional Customization
- Custom internal volumes
- Modified external dimensions
- Custom path lengths
- Specialized shapes for instrument compatibility
Surface & Optical Modifications
- Special coatings for enhanced durability
- Anti-reflection treatments
- Partial black wall configurations
- Custom optical window orientations
Functional Enhancements
- Integration of filling ports
- Addition of stoppers or caps
- Temperature control adaptations
- Flow-through designs
Usage Guide of Quartz Micro Cuvette with Black Walls
Proper Handling & Cleaning
- Handle with care - Always hold cuvettes by the frosted or ribbed sides, never by the optical windows. Use lint-free gloves when possible.
- Basic cleaning - Rinse immediately after use with appropriate solvent, followed by distilled water. For aqueous solutions, use mild detergent if necessary.
- Thorough cleaning - For persistent residues, soak in 50% nitric acid solution (except for black walls), followed by thorough rinsing with distilled water.
- Drying - Air dry in dust-free environment or use compressed oil-free air. Never use heat drying for micro cuvettes.
Best Practices for Analysis
- Sample preparation - Ensure samples are free from particulates by filtering or centrifuging before measurement.
- Loading technique - Use appropriate micropipettes and avoid bubbles by loading slowly along the wall of the cuvette.
- Orientation - Ensure proper alignment in the instrument with optical windows perpendicular to the light path.
- Calibration - Regularly validate optical performance using reference standards appropriate for your application.
Storage Recommendations
- Store in original packaging or dedicated cuvette boxes in a dust-free environment
- Maintain room temperature conditions and avoid temperature fluctuations
- Ensure complete dryness before storage to prevent contamination or etching
- Periodically inspect for chips, cracks, or surface contamination before use
Need Engineering Support for Your Project?
Why Partner with TOQUARTZ
Direct Factory Advantage
As a direct manufacturer, we can cut out the numerous intermediate links.
Engineering Expertise
Technical team guides clients from material selection to design optimization, translating specs into deliverables.
Flexible Manufacturing
Handling standard & custom orders via small-batch expertise and prototyping rigor to meet urgent deadlines.
Quality
Assurance
Pre-shipment 3-step validation:
1. dimensional accuracy,
2. material purity ,
3. performance thresholds
Global Supply Chain
Reliable global logistics to industrial hubs (DE/US/JP/KR priority) with trackable milestones.
Releted Products
As a specialized manufacturer with direct factory capabilities, TOQUARTZ provides both standard and custom quartz solutions with engineering support throughout the specification and implementation process.
FAQ
Q: Why are quartz micro cuvettes with black walls preferred for micro-volume UV-VIS applications?
A: Their black wall design minimizes optical interference, while the micro-volume chamber (20–200μL) ensures accurate absorbance readings without sample dilution.
Q: Can quartz micro cuvettes with black walls be used for highly light-sensitive compounds?
A: Yes, the black walls block lateral ambient light, making them ideal for photostability testing of APIs and other light-sensitive analytes.
Q: Do quartz micro cuvettes with black walls affect baseline correction in UV-VIS instruments?
A: No, they improve baseline stability by suppressing scattered light, especially in instruments with high-sensitivity detectors.
Q: Are quartz micro cuvettes with black walls compatible with standard spectrophotometers?
A: Yes, they follow the standard 12.5×12.5mm external dimension and 10mm pathlength, ensuring full compatibility with most UV-VIS and fluorescence instruments.
Q: Can quartz micro cuvettes with black walls be reused after cleaning?
A: Yes, they are reusable with proper cleaning protocols, but care must be taken to avoid damaging the black coating during acid or solvent exposure.
