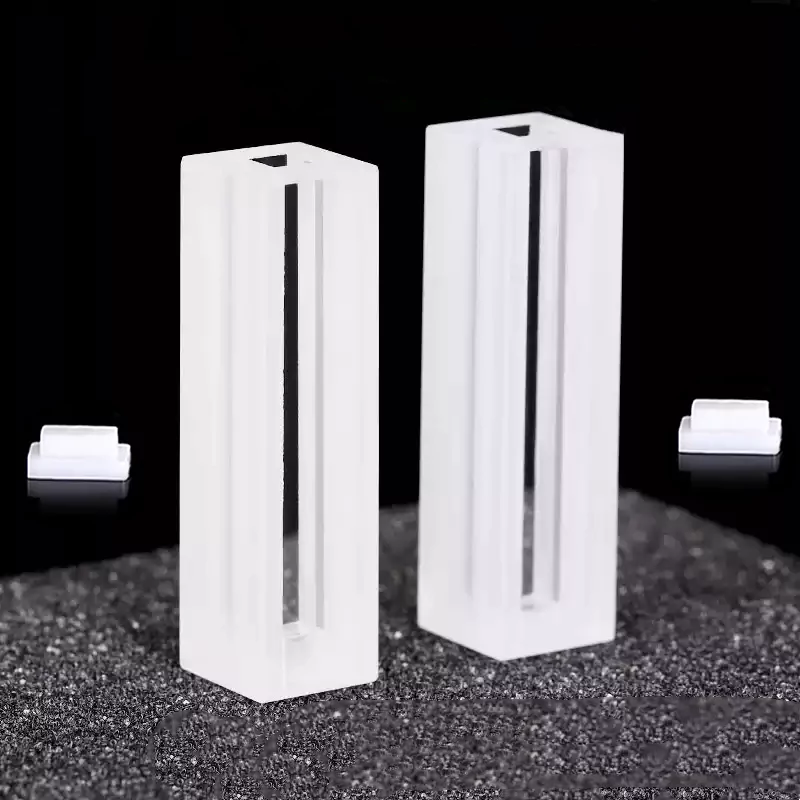

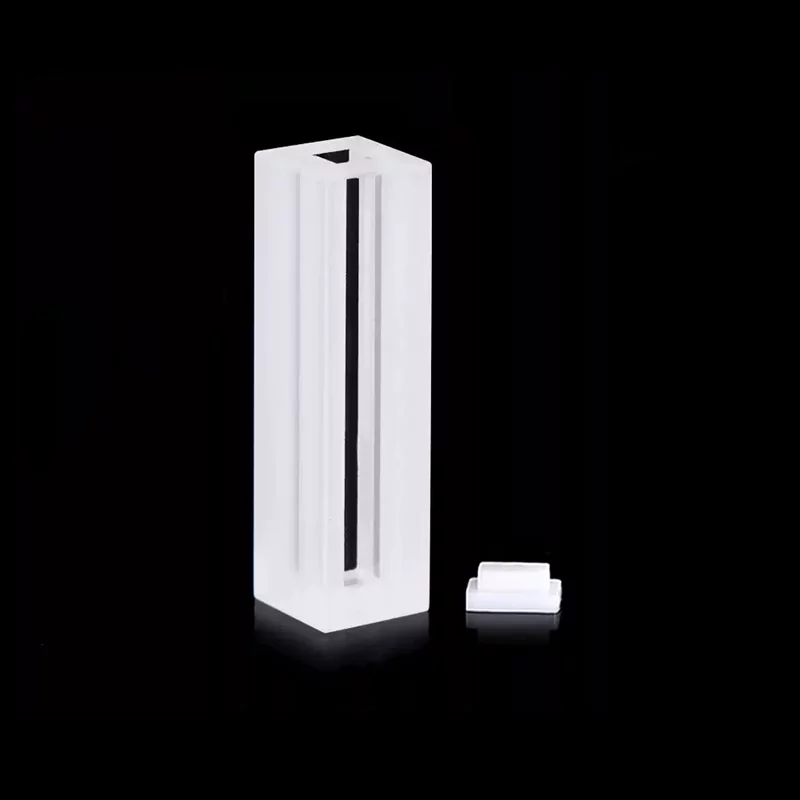

Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid for Spectroscopic Analysis -TOQUARTZ®
Features of Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid
TOQUARTZ® Micro Quartz UV Cuvette Cell combines precision manufacturing with high-purity materials to deliver exceptional performance for spectroscopic applications. Each cuvette is carefully crafted to meet the demanding requirements of scientific and industrial analysis.
Optical Clarity
Micro Quartz UV Cuvette features 99.98%+ fused quartz with UV-Vis (200-2500nm) transmission for undistorted optical clarity and zero absorption peaks in spectroscopy.
Chemical Resistance
It resists laboratory acids/bases/salts/organic solvents per ISO 695 while maintaining integrity without degradation, making it suitable for a wide range of analytical applications without material degradation.
Precision Optical Surfaces
Dual-side polished optics achieve high flatness/parallelism per ISO 10110-8, ensuring consistent light paths, minimal distortion, and reliable spectrophotometry with reduced inter-sample variability.

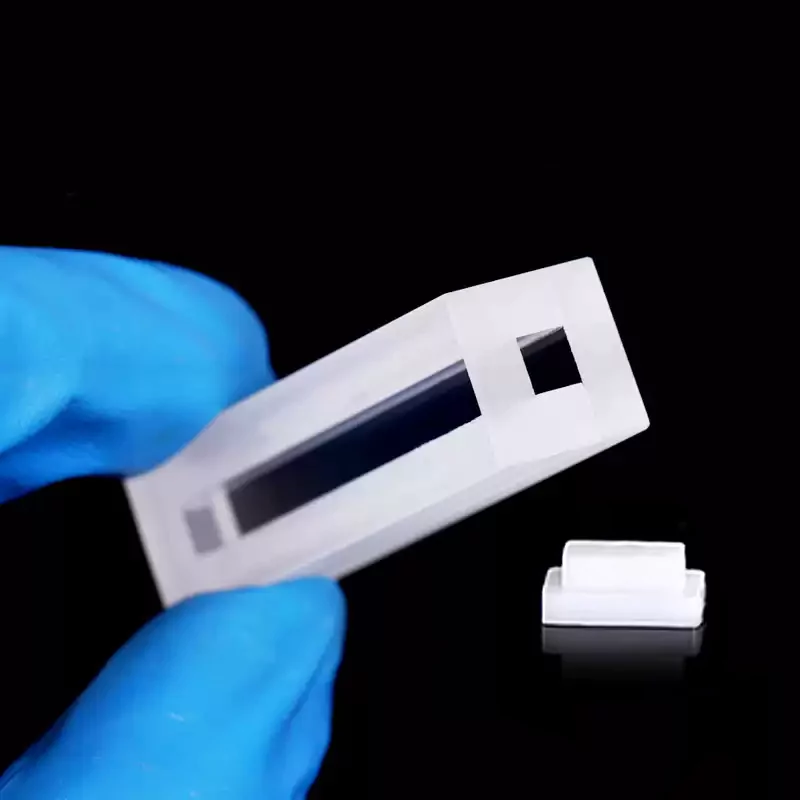

Secure Lid Design
Precision-engineered lid prevents sample evaporation or contamination while maintaining integrity during extended analysis via tight environmental sealing.
- Wide Wavelength: 200-2500nm
- Thermostability: 600°C
- Secure Lid Design
Technical Specifications & Dimensions of
Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid
Technical Specifications of Micro Quartz UV Cuvette Cell 2 Polished Side
Chemical Properties
| Material | Fused Quartz (SiO₂) | High purity synthetic quartz |
| Purity | 99.995% SiO₂ | Ultra-high purity grade |
| Chemical Resistance | Excellent | Resistant to most acids, bases, and solvents |
| Hydrophobicity | Hydrophilic | Good wettability with aqueous solutions |
| Thermal Expansion Coefficient | 5.5×10⁻⁷/K | Very low thermal expansion |
| Maximum Operating Temperature | 600°C | Suitable for high-temperature samples |
Optical Properties
| Wavelength Range | 200-2500nm | Full UV-Vis-NIR spectrum |
| UV Transmission at 200nm | ≥85% | Superior deep UV performance |
| UV Transmission at 220nm | ≥88% | Ideal for protein analysis |
| UV Transmission at 260nm | ≥90% | Optimized for DNA/RNA quantification |
| Visible Light Transmission | ≥92% | 400-700nm range |
| Refractive Index (589.3nm) | 1.458 | Standard for fused quartz |
| Surface Flatness | λ/10 | Optical grade polishing |
Size of of Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid
| Model | Description | Wavelength | Path Length | Volume | Thermostability | Outline Dimension |

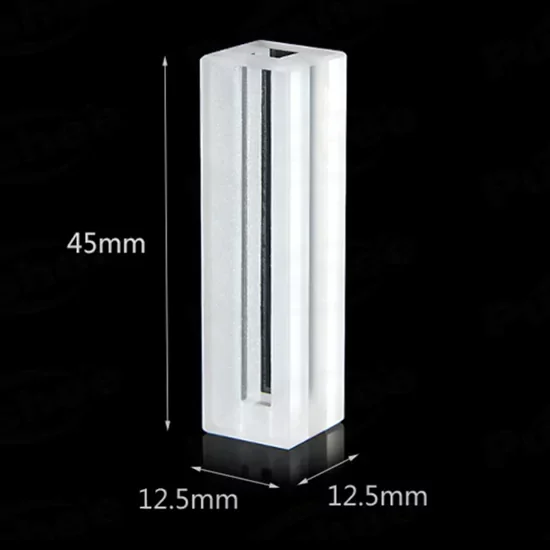

| AT-BSM-009 | 560μl Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid | 200nm-2500nm | 4mm | 560μl | 600℃ | 12.5×12.5x45mm |
TOQUARTZ® Solving Critical Challenges with Micro Quartz UV Cuvette Cells
Micro Quartz UV Cuvette Cells for Precise Spectrophotometric Analysis
Key Advantages
-
Path Length Deviation ≤ ±0.01mm
Ensures consistent absorbance readings across batches for DNA/RNA quantification. -
UV Transmission ≥90% @260nm
Enables accurate nucleic acid concentration measurement without baseline drift. -
Internal Volume Tolerance ≤ ±2%
Minimizes sample volume variation, critical for micro-volume assays under 600μl.
TOQUARTZ® solution
A U.S.-based spectrophotometer OEM reported ±0.03mm path length variation in previous suppliers’ cuvettes, causing up to 8% deviation in DNA concentration readings.
After switching to TOQUARTZ® Micro Quartz UV Cuvettes with certified ±0.01mm tolerance, calibration drift was reduced by 72%, and instrument recalibration frequency dropped from weekly to monthly.
Micro Quartz Glass UV Cuvette for Medical Diagnostic Applications
Key Advantages
-
Outer Dimension Tolerance ≤ ±0.05mm
Ensures seamless integration into automated IVD carousel systems without jamming. -
Lid Seal Integrity ≥ 98% (Evaporation Test, 4h @ 37°C)
Prevents sample loss during extended diagnostic cycles in closed systems. -
Batch-to-Batch Optical Consistency ΔAbs ≤ 0.003 @ 280nm
Reduces false positives/negatives in protein-based assays due to optical variability.
TOQUARTZ® solution
A German IVD device manufacturer faced 12% cuvette rejection rate due to dimensional mismatch with robotic arms.
TOQUARTZ® supplied cuvettes with verified ±0.05mm outer tolerance, reducing rejection rate to under 1.5%. This saved €18,000 annually in rework costs and improved system uptime by 9.2%.
Micro Fused Quartz UV Cuvette for UV Absorbance in High-Throughput Compound Screening
TOQUARTZ® Micro Quartz UV Cuvette with 2 Polished Sides and Lid ensures stable optical performance and sealed sample integrity. It helps reduce false negatives and improves hit rates in automated screening workflows.
Key Advantages
-
Path Length Consistency ±0.01mm
Minimizes absorbance deviation across 96-well batch screening, improving data reproducibility. -
UV Transmission ≥90% @ 220nm
Enables reliable detection of low-concentration compounds in the 200–300nm absorbance range. -
Evaporation Loss ≤1.2% over 2h @ 25°C
Lid-sealed design maintains sample volume stability during extended automated runs.
TOQUARTZ® solution
A South Korean pharmaceutical HTS lab reported 7.8% false negative rate due to sample evaporation in open-top cuvettes during 2-hour batch runs.
After switching to TOQUARTZ® Micro Quartz UV Cuvette with 2 Polished Sides and Lid, evaporation loss dropped to 1.2%, and hit rate accuracy improved by 9.6%, reducing compound retesting by 31% over a 3-month screening cycle.
Customization Services for TOQUARTZ®
Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid
Custom Dimensions
- Custom path lengths
- Modified outer dimensions
- Special volume requirements
- Precision-matched pairs
Optical Configurations
- 4-sided polished cuvettes
- Black-walled options
- Special angle configurations
- Enhanced polishing specifications
Specialized Features
- Flow-through ports/tubing
- Custom closure systems
- Temperature control integration
- Specialty markings/graduations
TOQUARTZ® Customization Process
This is the dedicated custom project workflow for Micro Quartz UV Cuvette with 2 Polished Sides and Lid. Each step is designed to ensure your specifications are accurately translated into production-ready cuvettes.
Technical Consultation
TOQUARTZ® begin by understanding your application needs for Micro Quartz UV Cuvette with 2 Polished Sides and Lid. Our engineers will review your required path length, volume, lid type, and optical configuration.
Drawing & Specification Confirmation
Based on your input, we provide a detailed technical drawing of the customized Micro Quartz UV Cuvette with 2 Polished Sides and Lid. You will confirm dimensions, tolerances, and material compatibility before prototyping.
Prototype Manufacturing & Testing
We produce a small batch of prototypes under controlled conditions using high-purity fused quartz. Each Micro Quartz UV Cuvette with 2 Polished Sides and Lid is tested for path length accuracy, UV transmission, and lid seal integrity.
Batch Production & Delivery
Upon prototype approval, we proceed to full-scale production with strict quality control. Your customized Micro Quartz UV Cuvette with 2 Polished Sides and Lid will be delivered with batch traceability and inspection reports.
Usage Guide of Micro Quartz UV Cuvette Cell 2 Polished Sides with Lid
Proper Handling
- Always handle cuvettes by the non-optical sides to prevent fingerprints and contamination of optical surfaces.
- Use lint-free optical tissues or gloves when handling to minimize contamination.
- Avoid placing cuvettes on hard surfaces that could scratch the optical faces.
- Insert and remove from spectrophotometers carefully to prevent chipping or cracking.
Cleaning Procedures
- Rinse with ultrapure water or appropriate solvent immediately after use.
- For stubborn residues, soak in dilute (0.1M) HCl or non-abrasive laboratory detergent solution.
- Clean optical surfaces with spectroscopic-grade solvents (methanol, acetone) and optical wipes.
- Air dry in a dust-free environment or use filtered compressed air for drying.
Sample Loading
- Fill to approximately 80% capacity (440-480μl) to allow for thermal expansion.
- Use precision micropipettes for accurate volume dispensing.
- Ensure no air bubbles are present in the light path as they can distort readings.
- Secure lid properly to prevent evaporation and contamination.
Storage Recommendations
- Store in original packaging or dedicated cuvette storage containers.
- Keep in dust-free, dry environment at room temperature.
- Avoid storage near corrosive chemicals or sources of contamination.
- For long-term storage, ensure cuvettes are completely clean and dry.
Important Usage Notes
- Avoid rapid temperature changes that may cause thermal shock and cracking.
- Do not use abrasive cleaning materials that could scratch optical surfaces.
- Check solvent compatibility before use with uncommon or aggressive chemicals.
Expert Engineering Support for Your Micro Quartz UV Cuvette Requirements
and application-specific questions about Micro Quartz UV Cuvette Cells with 2 polished sides.
Why Partner with TOQUARTZ
Direct Factory Advantage
As a direct manufacturer, we can cut out the numerous intermediate links.
Engineering Expertise
Technical team guides clients from material selection to design optimization, translating specs into deliverables.
Flexible Manufacturing
Handling standard & custom orders via small-batch expertise and prototyping rigor to meet urgent deadlines.
Quality
Assurance
Pre-shipment 3-step validation:
1. dimensional accuracy,
2. material purity ,
3. performance thresholds
Global Supply Chain
Reliable global logistics to industrial hubs (DE/US/JP/KR priority) with trackable milestones.
Releted Products
As a specialized manufacturer with direct factory capabilities, TOQUARTZ provides both standard and custom quartz solutions with engineering support throughout the specification and implementation process.
FAQ
Q: Why use a Micro Quartz UV Cuvette with 2 polished sides and lid?
A: The 2 polished sides configuration is optimal for standard spectrophotometric analysis where light passes through the sample in a single axis. This design provides a defined path length (4mm in our standard model) for accurate absorption measurements while minimizing material costs. The lid serves three critical purposes: preventing sample evaporation during analysis (especially important for volatile solvents), reducing contamination risk, and eliminating meniscus formation that can interfere with readings. For applications requiring fluorescence or 90° detection, we offer 4-sided polished versions as a custom option.
Q: What is the wavelength range of Micro Quartz UV Cuvette Cells?
A: TOQUARTZ® Micro Quartz UV Cuvette Cells offer an exceptionally wide wavelength range of 200-2500nm, covering the UV, visible, and near-infrared regions of the spectrum. This makes them versatile for numerous analytical techniques. The high-purity fused quartz material (max. up to 99.995% SiO₂) provides superior transmission in the deep UV range, with ≥85% transmission at 200nm, ≥88% at 220nm, and ≥90% at 260nm. This performance is critical for applications like DNA/RNA quantification, protein analysis, and other UV-dependent analytical methods that require detection in the 200-400nm range where glass cuvettes are unsuitable.
Q: What is the path length of the Micro Quartz UV Cuvette and why is it important?
A: TOQUARTZ® standard Micro Quartz UV Cuvette Cell (AT-BSM-009) features a 4mm path length with a precision tolerance of ±0.01mm. The path length is the distance light travels through the sample and is critical for quantitative analysis using Beer-Lambert law calculations. The 4mm path length offers an optimal balance between sensitivity and sample volume requirements. For samples with higher concentration, the shorter path length (compared to standard 10mm cuvettes) allows direct measurement without dilution, while still requiring only 560μl of sample. Custom path lengths from 0.5mm to 10mm are available upon request for specific application requirements.
Q: What is the solvent compatibility of Micro Quartz UV Cuvette Cells?
A: TOQUARTZ® Micro Quartz UV Cuvette Cells exhibit excellent chemical resistance and are compatible with most laboratory solvents and solutions. They can withstand acids (except hydrofluoric acid), bases, alcohols, ketones, aliphatic and aromatic hydrocarbons, and aqueous solutions. The fused quartz material is highly resistant to chemical attack, making it suitable for a wide range of analytical applications. However, avoid prolonged exposure to hydrofluoric acid (HF) and hot concentrated phosphoric acid, which can etch quartz surfaces. Note that the lid material (standard PTFE/PE) may have different chemical compatibility than the quartz body; custom lid materials are available for specific solvent requirements.
Q: What is the correct orientation for a Micro Quartz UV Cuvette with 2 polished sides?
A: Proper orientation of a Micro Quartz UV Cuvette with 2 polished sides is essential for accurate measurements. The polished sides (optical windows) should align with the light path of your spectrophotometer. In most instruments, this means positioning the cuvette so that the clear, polished sides face the light source and detector, while the frosted or non-polished sides are perpendicular to the light path. Our cuvettes typically have small orientation marks or frosted sides to help identify the optical path direction. For Z-dimension spectrophotometers, ensure the appropriate height alignment using adapters if necessary. If using for fluorescence measurements, position the cuvette so that the excitation beam enters through a polished face and fluorescence detection occurs at 90° through a non-polished side (or use our 4-sided polished cuvettes for this application).
