Low-Volume Optimized Quartz Micro Cuvettes for Analytical Labs -TOQUARTZ®
Features of Quartz Micro Cuvette
TOQUARTZ® Quartz Micro Cuvettes are manufactured using high-purity fused silica, delivering exceptional performance for precise spectroscopic analysis in laboratory settings.
Optical Transmission
Transmission across 200nm-2500nm wavelength range with no absorption peaks, ideal for UV-Vis and NIR applications.
Chemical Resistance
Resistance against acids, bases, and organic solvents, ensuring durability with aggressive chemical samples.
Thermal Stability
Thermal stability up to 1100°C, allowing usage in high-temperature applications without deformation.
Material Properties
99.98% SiO₂ purity ensuring minimal impurities and background interference for accurate spectroscopic measurements.
- Resistant to acids and alkalis(except HP)
- Temperature resistance up to 1100°C
- Customization available
Technical Specifications & Dimensions of Quartz Micro Cuvette
Technical Specifications
| Property | Specification |
| 1. Physical Properties | |
| Material | High-purity fused silica (99.98% SiO, max. up to 99.995%) |
| Density | 2.2 g/cm³ |
| Fracture Modulus | ≥350 MPa |
| Thermal Conductivity | 120-160 W/m·K |
| Thermal Expansion Coefficient | 5.5×10-7/℃ |
| Maximum temperature | 1100°C |
| Thermal shock | Excellent (ΔT = 900°C) |
| 2. Optical Properties | |
| Transmission Range | 200nm-2500nm |
| UV cutoff | <190nm |
| Transmission efficiency | >80% (paired testing) |
| Refractive index | 1.458 at 546.1nm |
| Dispersion (Abbe) | 67.8 |
| Homogeneity | ≤5 × 10-6 |
Size Chart
| Model | Description | Wavelength | Path Length | Volume | Transmittance | Outline Dimension |

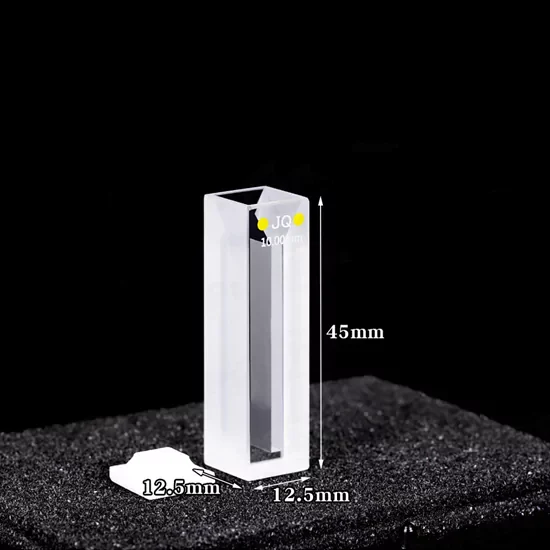

| AT-BSM-4037 | 350μl-1750μl Quartz Micro Cuvette | 200nm-2500nm | 10mm | 350μl-1750μl | >80% (Paired Testing) | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Transmittance | Outline Dimension |

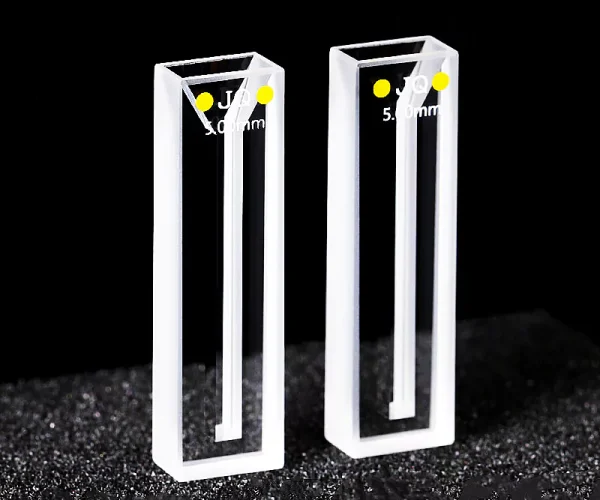

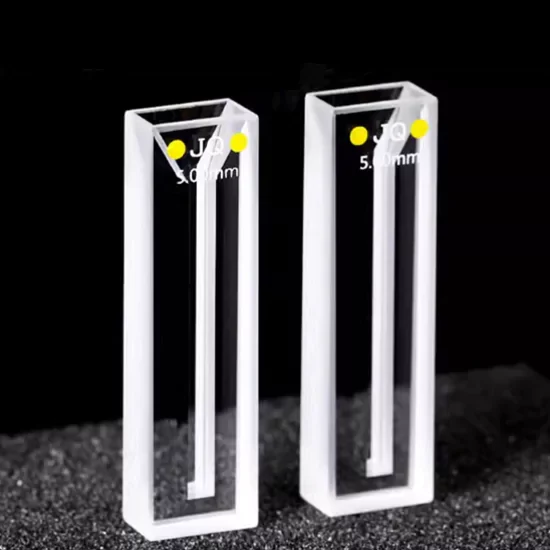

| AT-BSM-4039 | 500 μlQuartz Micro Cuvette | 200nm-2500nm | 5mm | 500μl | >80% (Paired Testing) | 12.5×7.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Transmittance | Outline Dimension |
| AT-BSM-4007 | 700μl Quartz Micro Cuvette | 200nm-2500nm | 10mm | 700μl | >80% (Paired Testing) | 12.5×12.5x45mm |
| Model | Description | Wavelength | Path Length | Volume | Transmittance | Outline Dimension |

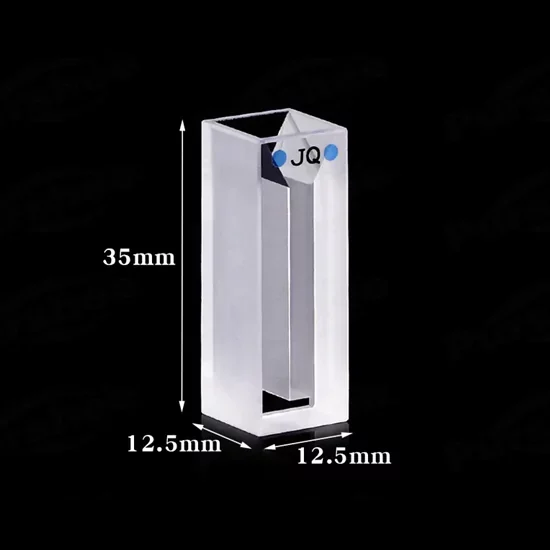

| AT-BSM-4011 | 800μl Quartz Micro Cuvette | 200nm-2500nm | 10mm | 800μl | >80% (Paired Testing) | 12.5×12.5x35mm |
TOQUARTZ® Solving Critical Challenges in Spectroscopic Analysis with Quartz Micro Cuvettes
Quartz Micro Cuvettes for Precision UV-Vis Spectroscopy Applications
Key Advantages
-
Matched pathlength deviation <±0.05mm
Ensures consistent absorbance readings across batches in high-precision UV-Vis instruments. -
Volume-optimized geometry for 350μl–1750μl samples
Reduces sample waste by up to 60% compared to standard 3.5ml cuvettes in analytical workflows. -
Dual-side optical polishing with 0.01 surface roughness Ra
Minimizes light scattering, improving signal linearity in 190–1100nm range.
TOQUARTZ® solution
A German analytical instrument OEM reported a 12% rejection rate due to cuvette misalignment in automated UV-Vis systems. After switching to TOQUARTZ’s ±0.05mm tolerance micro cuvettes, alignment errors dropped below 1.2%, improving calibration stability and reducing recalibration frequency by 40% over 6 months.
Fused Quartz Micro Cuvettes for Advanced Fluorescence Detection Systems
Key Advantages
-
Black-wall coating with >99.5% light absorption efficiency
Suppresses stray light interference, enhancing fluorescence signal-to-noise ratio in low-concentration assays. -
Fluorescence background <0.002 a.u. at 350nm excitation
Enables detection of sub-nanomolar fluorophores in trace analysis applications. -
PTFE-sealed microcuvette design with evaporation loss <1% over 2 hours
Maintains sample integrity during extended fluorescence scans.
TOQUARTZ® solution
A Japanese biotech integrator developing a portable fluorescence reader faced inconsistent background signals using generic cuvettes. TOQUARTZ supplied black-wall micro cuvettes with verified <0.002 a.u. background at 350nm. Signal reproducibility improved by 28%, and detection limits for FITC-tagged proteins dropped from 5nM to 1.2nM in internal validation.
Quartz Micro Cuvettes for Life Science and Molecular Biology Research
Key Advantages
-
UV transmission >85% at 260nm with no absorption peak
Enables accurate quantification of nucleic acids (A260/A280) in micro-volume assays. -
Certified DNA/RNA adsorption rate <0.5% after 30 min incubation
Prevents sample loss and ensures reproducibility in low-copy number experiments. -
Inner surface hydrophilicity angle <30°
Promotes uniform sample distribution, reducing pipetting error in 1μl–5μl loading.
TOQUARTZ® solution
A Canadian genomics lab experienced 15% variability in RNA quantification due to inconsistent cuvette surface properties. TOQUARTZ provided micro-volume cuvettes with certified low adsorption and hydrophilic inner walls. Post-implementation, inter-sample CV dropped from 9.8% to 2.1%, improving qPCR input accuracy and reducing repeat runs by 35%.
TOQUARTZ® Customization Options for Quartz Micro Cuvette
Customization Options

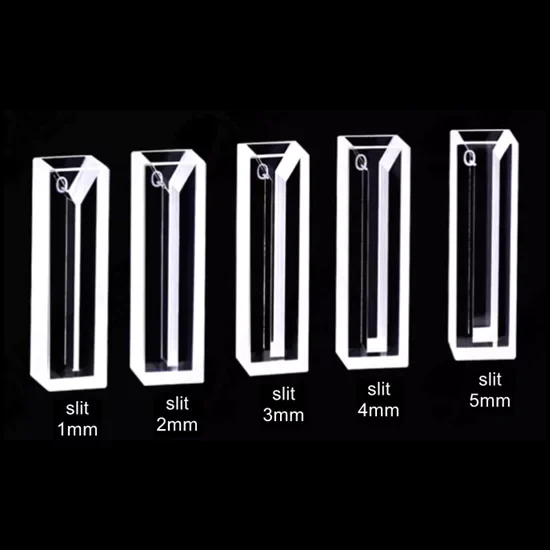

- Path Length Variations: Custom path lengths
- Volume Adaptations: Modified internal dimensions for specific sample requirements
- Wall Treatments: Black, frosted, or partially masked walls
- Cap Designs: Screw caps, PTFE stoppers, or specialized sealing mechanisms
Additional Options
- Dimensional Modifications: Custom heights, widths, and optical configurations
- Special Markings: Volume indicators, orientation marks, or custom identifiers
- Matched Sets: Optically matched cuvette sets for comparative analysis
- Material Grade Options: Enhanced purity for specialized applications
Custom Design Process
- Consultation with our technical team to define specifications
- CAD design and feasibility assessment
- Prototype development and testing
- Production and quality control verification
- Delivery with full technical documentation
Usage Guide of Quartz Micro Cuvette
Sample Handling
- Fill cuvettes using precision pipettes to avoid air bubbles. For micro-volume models, ensure the minimum recommended volume is maintained for accurate readings.
Instrument Placement
- Insert cuvettes with the optical windows facing the light path. Most TOQUARTZ cuvettes have two clear sides and two frosted sides; position the clear sides perpendicular to the light beam.
Temperature Considerations
- While quartz can withstand high temperatures (up to 1100°C), avoid rapid temperature changes exceeding 100°C/minute to prevent thermal shock.
Cleaning Protocol
- After each use, rinse with appropriate solvent, followed by distilled water. For stubborn residues, soak in 50% nitric acid solution for 30 minutes, then rinse thoroughly with distilled water.
Storage Recommendations
- Store clean, dry cuvettes in the original protective case or dedicated dust-free container to protect optical surfaces. Avoid direct contact between optical windows.
Handling Precautions
- Always hold cuvettes by the frosted sides or tops to prevent fingerprints on optical windows. Use lint-free gloves or tissues when handling.
Need Custom Quartz Micro Cuvettes for Your Specific Application?
Why Partner with TOQUARTZ
Direct Factory Advantage
As a direct manufacturer, we can cut out the numerous intermediate links.
Engineering Expertise
Technical team guides clients from material selection to design optimization, translating specs into deliverables.
Flexible Manufacturing
Handling standard & custom orders via small-batch expertise and prototyping rigor to meet urgent deadlines.
Quality
Assurance
Pre-shipment 3-step validation:
1. dimensional accuracy,
2. material purity ,
3. performance thresholds
Global Supply Chain
Reliable global logistics to industrial hubs (DE/US/JP/KR priority) with trackable milestones.
Releted Products
As a specialized manufacturer with direct factory capabilities, TOQUARTZ provides both standard and custom quartz solutions with engineering support throughout the specification and implementation process.
FAQ
Q: Can Quartz Micro Cuvettes be cleaned and reused without affecting performance?
A: Yes, TOQUARTZ® Quartz Micro Cuvettes are reusable. They can be cleaned with nitric acid or ethanol and rinsed with deionized water without degrading optical performance.
Q: Do Quartz Micro Cuvettes support UV measurements below 200nm?
A: TOQUARTZ® Quartz Micro Cuvettes provide excellent transmission from 200nm to 2500nm. For measurements below 200nm, we offer enhanced UV-grade quartz upon request.
Q: What is the surface roughness of TOQUARTZ Quartz Micro Cuvettes?
A: The optical windows of TOQUARTZ® Quartz Micro Cuvettes are polished to a surface roughness of Ra ≤ 0.01μm, ensuring minimal light scattering and high measurement accuracy.
Q: How consistent is the optical transmission between batches of Quartz Micro Cuvettes?
A: Each batch of TOQUARTZ® Quartz Micro Cuvettes undergoes paired testing to ensure >80% transmission consistency across the 200–2500nm range.
Q: Do TOQUARTZ Quartz Micro Cuvettes support matched pair calibration?
A: Yes, we offer optically matched pairs of Quartz Micro Cuvettes with <0.3% transmission deviation, ideal for comparative analysis and dual-beam spectrophotometers.
